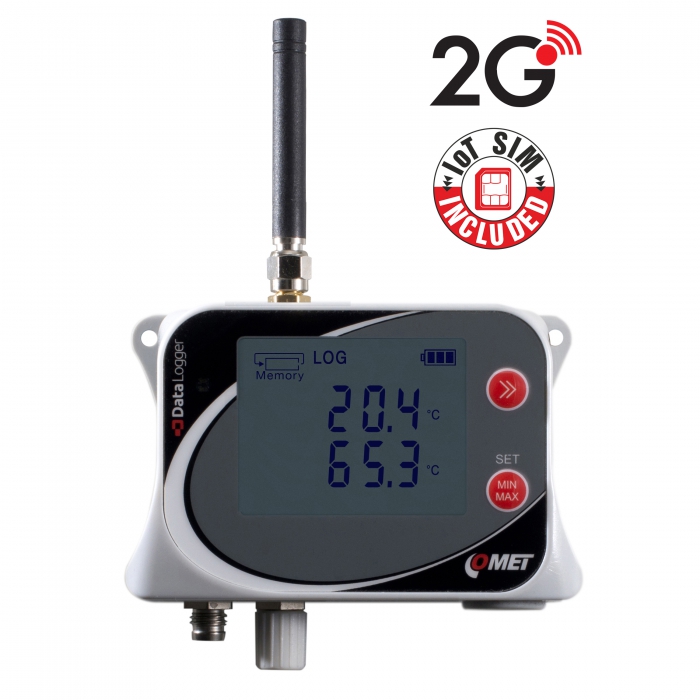

GSM Datalogger is designed to record temperature from two external Pt1000 probes. In case of exceeded set limits, SMS and JSON messages can be sent via GPRS data connection. Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system.

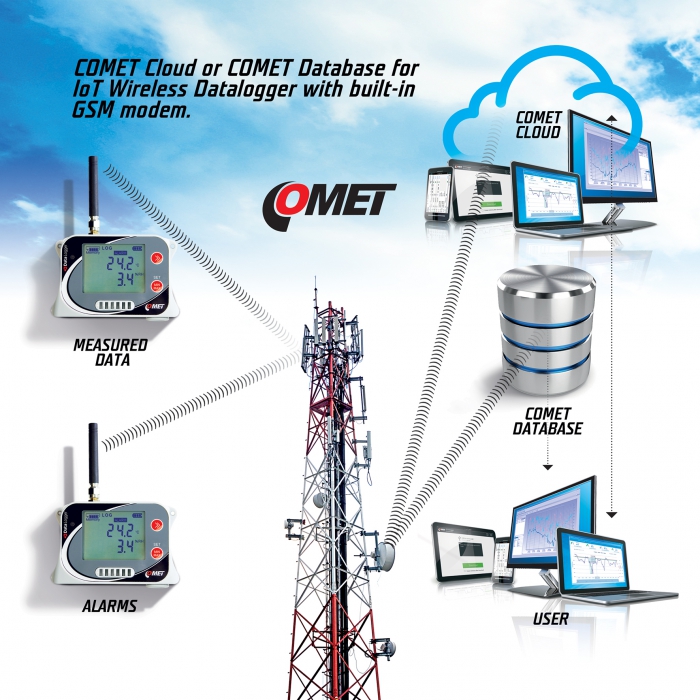

It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable. Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.



  • code
    U0121Msim
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +260 °C
Accuracy ±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe

GSM MODEM PARAMETERS

Quad-band 850/900/1800/1900MHz
Compliant to GSM Phase2/2+
GPRS GPRS mobile station class B
Class 4 2W @ 850/900MHz
Class 1 1W @ 1800/1900MHz

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 2x external temperature probe
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud from 5 minutes
Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class IP67
Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries) approx. 270 g
Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/E, ELKA connector

Temperature probe Pt1000TG8/E, ELKA connector

Temperature range: -80 to 200°C
code SN104E
Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105E
Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108E
Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113E
Temperature probe Pt1000TG7/E, ELKA connector

Temperature probe Pt1000TG7/E, ELKA connector

Temperature range: -50 to 200°C
code SN164E
Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165E
Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166E
Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167E
Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168E
Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169E
Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170E
Ambient temperature probe, 200-80/E

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C
code SN171
Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175E
Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178E
Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN179E
Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN180E
Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN181E
Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182E
Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188E
Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199E
Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200E
Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201E
Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202E
Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203E
Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature range: -30 to 80°C
code SN204E
Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210E
Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211E
Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212E
Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213E
Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN232E
Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN233E
Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN234E

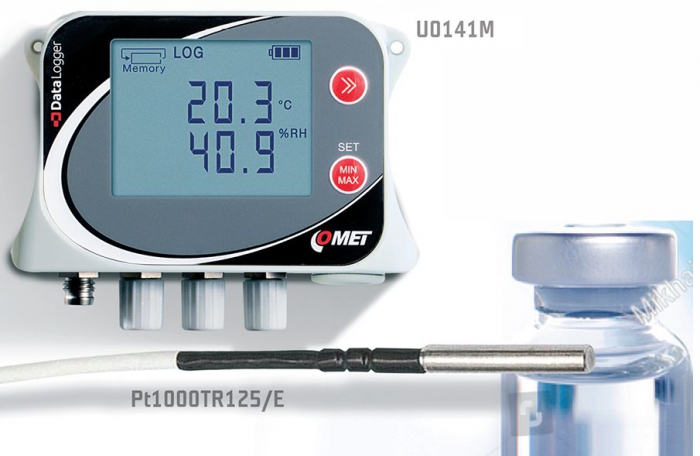

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Temperature range: -50 to 200°C
code SN252E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273E

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk
AC/DC adapter 230Vac to 5Vdc/2.1 A, US

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us
Accupack A8205 for dataloggers "U"

Accupack A8205 for dataloggers "U"

code A8205

Accredited temperature calibration

Accredited temperature calibration

code SLU001

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053

Wall holder for datalogger

Wall holder for datalogger

code LP100
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

code LP103

COMET Database

COMET Database

code CDB
COMET Cloud

COMET Cloud

code cloud
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

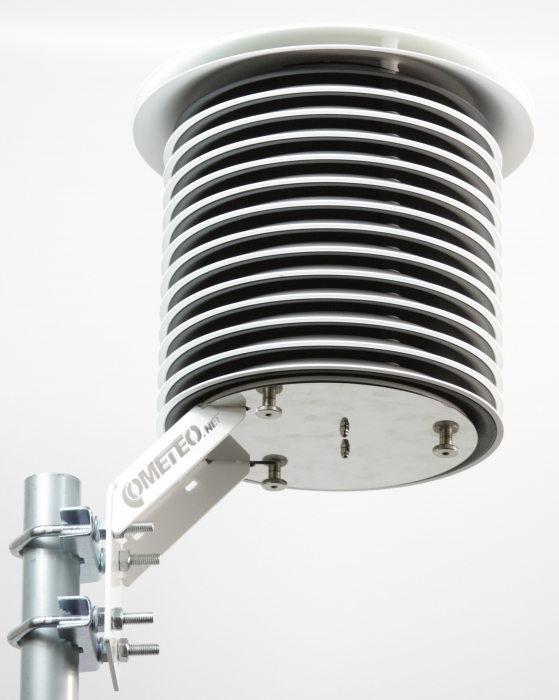

COMETEO Professional Thermometer Screen for Weather Station Sensor

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000

IoT ready Flat Rate SIM Card

IoT ready Flat Rate SIM Card

code LP105

COMET presentation case for samples

COMET presentation case for samples

code BM512
COMET Magnetic Foldable Stand

COMET Magnetic Foldable Stand

code PPO001

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.90 MB
download-icon Quick Start Manual
958.40 KB
download-icon Safety Information
335.90 KB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Declaration of Conformity
96.91 KB

Catalogs

download-icon CATALOG - Dataloggers
3.57 MB
download-icon CATALOG - GSM loggers
3.00 MB
download-icon Catalogue Sheets - COMET GSM Data Loggers
2.33 MB

Related products

COMET Cloud

COMET Cloud

code cloud
COMET Database

COMET Database

code CDB
COMETEO Professional Thermometer Screen for Weather Station Sensor

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000
IoT Wireless Temperature Datalogger with built-in sensor and 2G modem

IoT Wireless Temperature Datalogger with built-in sensor and 2G modem

code U0110M

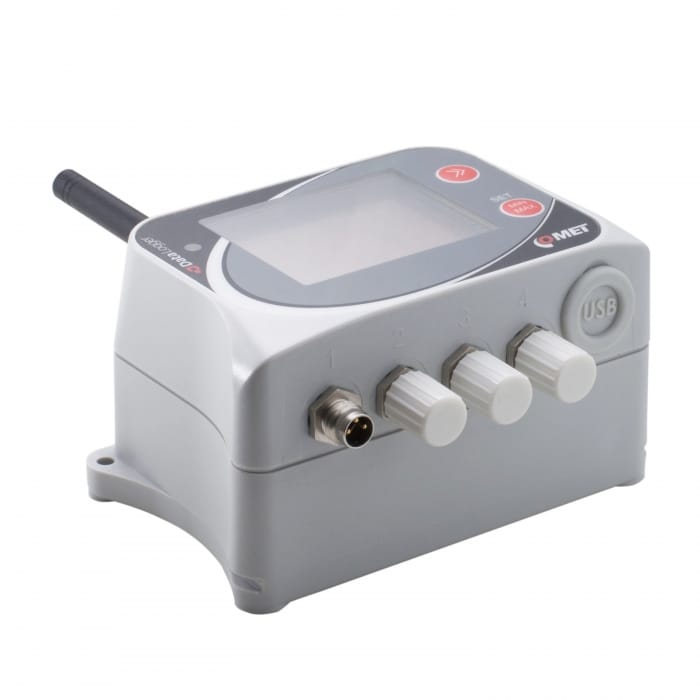

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem

code U0141M
IoT Wireless Temperature Datalogger for 2 external probes, with two two-state inputs, built-in 2G modem

IoT Wireless Temperature Datalogger for 2 external probes, with two two-state inputs, built-in 2G modem

code U0843M
IoT Wireless Temperature and Relative Humidity Datalogger, with built-in 2G modem

IoT Wireless Temperature and Relative Humidity Datalogger, with built-in 2G modem

code U3120M
IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 2G modem

IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 2G modem

code U3121M
IoT Wireless Temperature and Relative Humidity Datalogger with connector for other temperature probe, with built-in 2G modem

IoT Wireless Temperature and Relative Humidity Datalogger with connector for other temperature probe, with built-in 2G modem

code U3631M
IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 2G modem

IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 2G modem

code U4440M
IoT Wireless Datalogger for 3 current inputs 0-20mA and 1 two-state input, with built-in 2G modem

IoT Wireless Datalogger for 3 current inputs 0-20mA and 1 two-state input, with built-in 2G modem

code U6841M
IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 2G modem

IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 2G modem

code U7844M
IoT Wireless CO2 datalogger with built-in sensor, 2G modem

IoT Wireless CO2 datalogger with built-in sensor, 2G modem

code U8410M
Wireless thermometer, hygrometer barometer, Sigfox IoT

Wireless thermometer, hygrometer barometer, Sigfox IoT

code W7810

Reference

Wood Chip Self-Ignition Prevention System: A Reliable Solution for Safety and Quality

Wood Chip Self-Ignition Prevention System: A Reliable Solution for Safety and Quality

Type of application: Industry Agriculture

Animal Transportation with Temperature Monitoring & Animal Rescue Ambulance

Animal Transportation with Temperature Monitoring & Animal Rescue Ambulance

Type of application: Monitoring during transport Healthcare and Laboratory Agriculture

Temperature monitoring in Eberspächer active chillers

Temperature monitoring in Eberspächer active chillers

Type of application: Monitoring during transport Healthcare and Laboratory

COMET measures in Antarctica

COMET measures in Antarctica

Type of application: Industry Healthcare and Laboratory Server rooms and data centers Agriculture Weather monitoring

Implementation of online monitoring during storage of COVID-19 vaccine from Pfizer-BioNTech.

Implementation of online monitoring during storage of COVID-19 vaccine from Pfizer-BioNTech.

Type of application: Monitoring during transport Healthcare and Laboratory

Temperature measurement in organic poultry farming

Temperature measurement in organic poultry farming

Type of application: Agriculture

Installation of IoT Wireless dtaloggers in hematology and biochemistry

Installation of IoT Wireless dtaloggers in hematology and biochemistry

Type of application: Healthcare and Laboratory

We produce

Leading manufacturer of temperature, humidity, atmospheric pressure, carbon dioxide CO2 transmitters, data loggers, monitoring systems, data acquisiton systems, thermometers, hygrometers, barometers. Production includes data acquisition systems, humidity, temperature, CO2 transmitters and portable thermometers, hygrometers, barometers, CO2 meters. Instruments are designed for accurate measurement and for monitoring environmental conditions.

All instruments come with included traceable calibration certificate with declared metrological traceability of etalons based on requirements of EN ISO/IEC 17025 standard.





ISO logo CQS logo EZC logo
© Copyright 2024 COMET SYSTEM, s.r.o. | Webdesign by Spaneco
