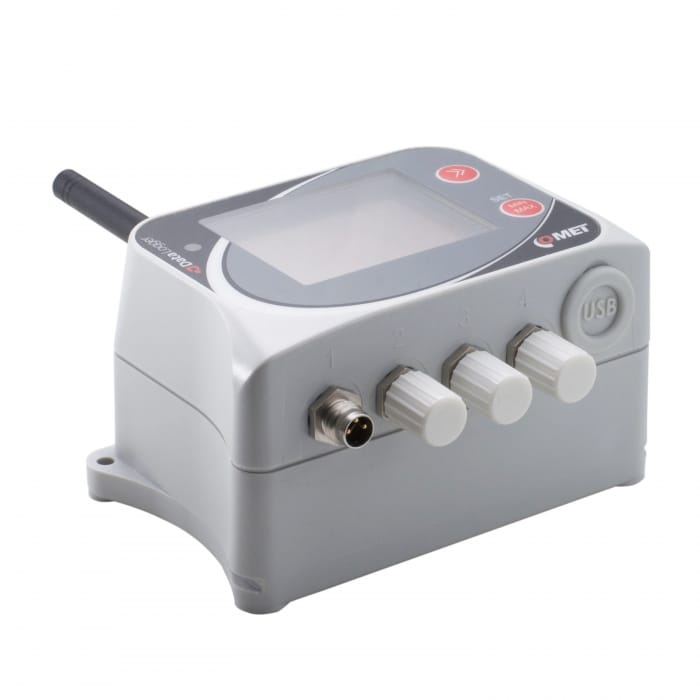

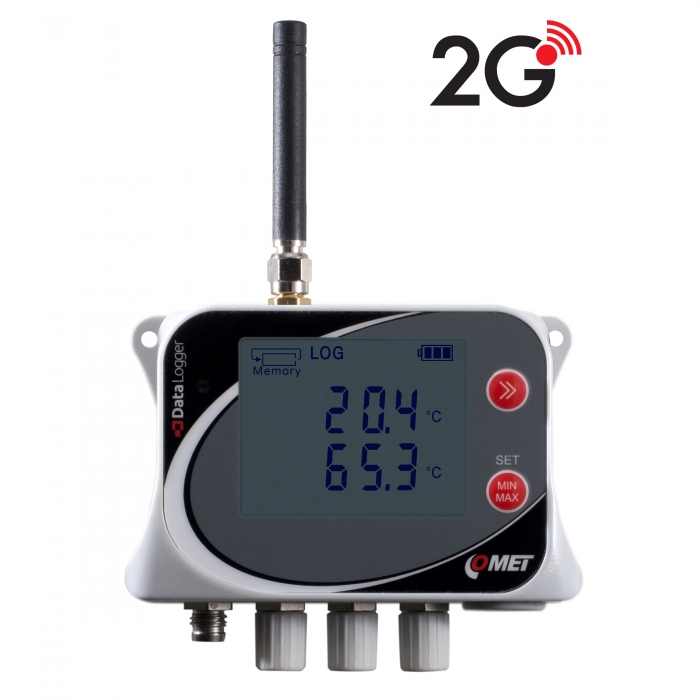

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem

GSM Datalogger is designed to record temperature from four external Pt1000 probes. In case of exceeded set limits, SMS and JSON messages can be sent via GPRS data connection. Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system.

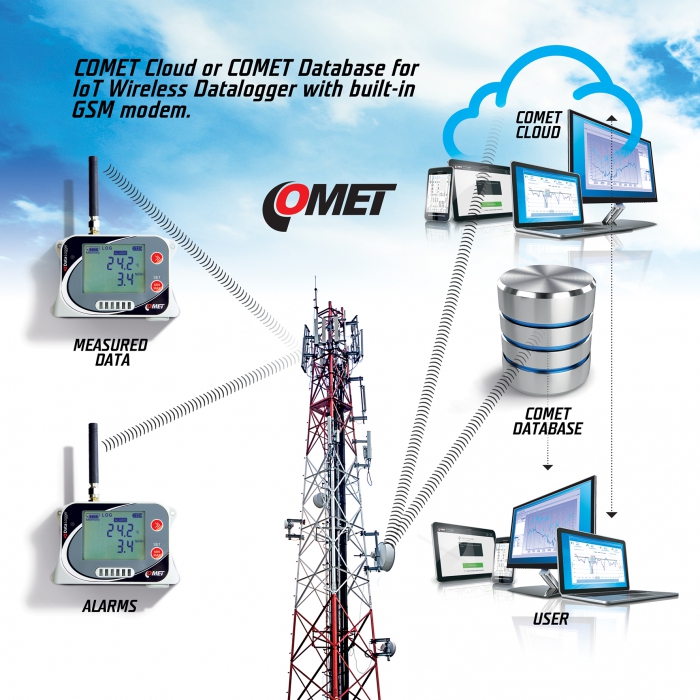

It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable. Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

code

U0141M
Warranty

3 years

Add to quote

Product variants

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +260 °C

Accuracy ±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe

GSM MODEM PARAMETERS

Quad-band 850/900/1800/1900MHz

Compliant to GSM Phase2/2+

GPRS GPRS mobile station class B

Class 4 2W @ 850/900MHz

Class 1 1W @ 1800/1900MHz

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C

Channels 4x external temperature probe

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

Recording interval to the internal memory adjustable from 1 second to 24 hours

Recording interval to the COMET Cloud from 5 minutes

Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh

Protection class IP67

Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm

Weight (including batteries) approx. 270 g

Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/E, ELKA connector

Temperature range: -80 to 200°C

code SN104E

Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature range: -80 to 200°C

code SN105E

Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature range: -80 to 200°C

code SN108E

Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature range: -80 to 200°C

code SN113E

Temperature probe Pt1000TG7/E, ELKA connector

Temperature range: -50 to 200°C

code SN164E

Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN165E

Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN166E

Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN167E

Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 220°C

code SN168E

Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C

code SN169E

Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature range: -30 to 130°C

code SN170E

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C

code SN171

Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C

code SN175E

Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature range: -50 to 200°C

code SN178E

Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN179E

Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN180E

Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN181E

Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature range: -30 to 130°C

code SN182E

Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature range: -30 to 130°C

code SN183E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C

code SN185E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C

code SN186E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C

code SN187E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C

code SN188E

Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C

code SN199E

Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C

code SN200E

Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C

code SN201E

Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C

code SN202E

Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature range: -30 to 80°C

code SN203E

Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature range: -30 to 80°C

code SN204E

Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Temperature range: -50 to 250°C

code SN210E

Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Temperature range: -50 to 250°C

code SN211E

Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Temperature range: -50 to 250°C

code SN212E

Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Temperature range: -50 to 250°C

code SN213E

Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN232E

Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN233E

Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN234E

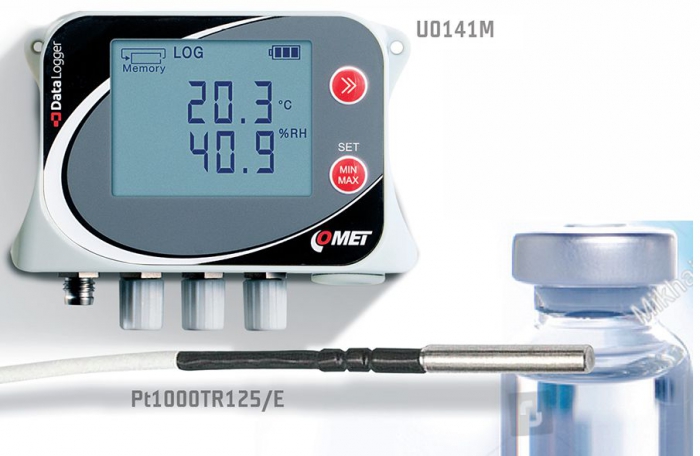

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Temperature range: -190 to 150°C

code SN239E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Temperature range: -190 to 150°C

code SN240E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Temperature range: -190 to 150°C

code SN241E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Temperature range: -190 to 150°C

code SN242E

Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C

Discontinued

Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C

Discontinued

Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C

Discontinued

Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Temperature range: -50 to 200°C

code SN252E

Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C

Discontinued

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature range: -30 to 180°C

code SN263E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C

code SN265E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C

code SN266E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C

code SN267E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C

code SN270E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C

code SN271E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C

code SN272E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C

code SN273E

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us

Accupack A8205 for dataloggers "U"

code A8205

Accredited temperature calibration

code SLU001

USB-C cable, 1 meter

code MP053

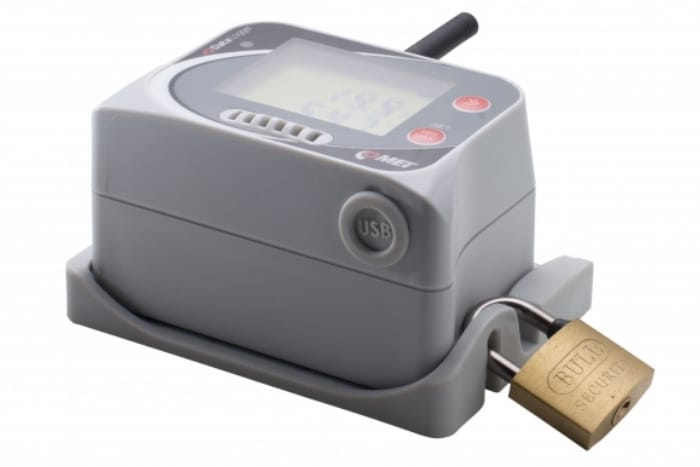

Wall holder for datalogger

code LP100

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

code LP103

COMET Database

code CDB

COMET Cloud

code cloud

COMET Cloud Lite for Android & iOS

code cloud_app

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV

Database Viewer for Comet Database

code DBV

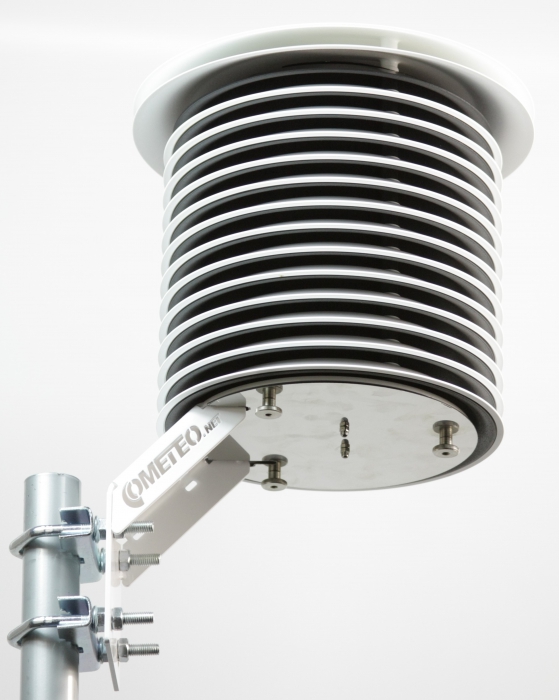

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000

IoT ready Flat Rate SIM Card

code LP105

COMET presentation case for samples

code BM512

COMET Magnetic Foldable Stand

code PPO001
