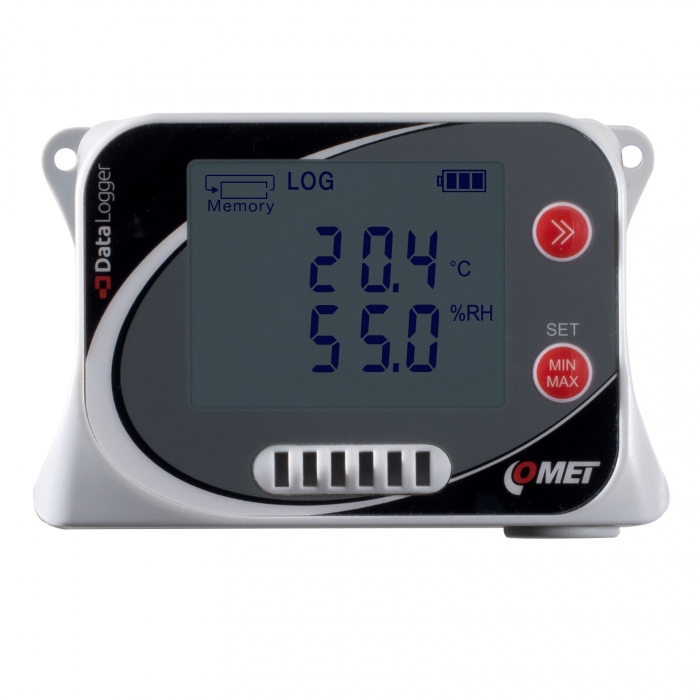

Temperature and humidity data logger with built-in sensors
Datalogger is designed to record temperature and humidity.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.
In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.
Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
-
codeU3120
-
Warranty3 years
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +70 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
± 1.8 % RH
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +70 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +70 °C
Channels
internal temperature and humidity sensor
Memory
500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval
adjustable from 1 s to 24 h
Display and alarm refresh
adjustable 1 s, 10 s, 1 min
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
Lithium battery 3.6 V; size AA
Protection class
IP67 electronics; IP30 sensors
Dimensions
61 x 93 x 32 mm
Weight (including batteries)
approx. 120 g
Warranty
3 years
Optional accessories and download
Lithium battery 3,6V/AA
code
A4203
Accredited temperature and relative humidity calibration
code
SLU003
USB-C cable, 1 meter
code
MP053

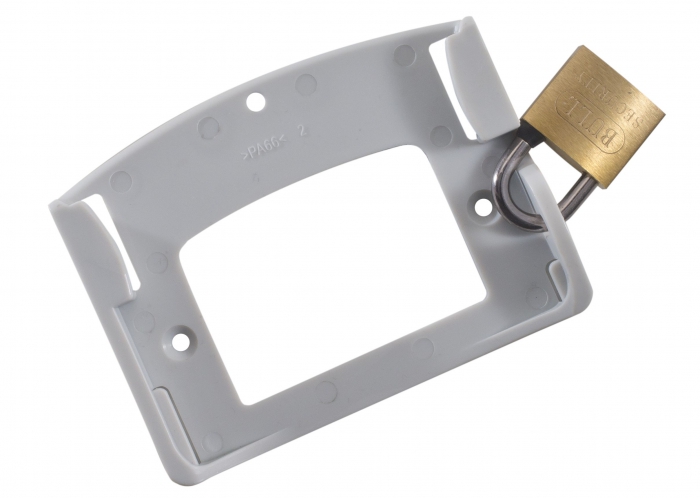

Wall holder for datalogger
code
LP100
Holder for mounting the Datalogger "U" on magnetic surfaces
code
LP102
COMET Database
code
CDB
COMET VISION - Analytical Software for Dataloggers and Multiloggers
code
CV
COMET presentation case for samples
code
BM512
COMET Magnetic Foldable Stand
code
PPO001
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Comet Database One Click Installer (21.1-V)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
Declaration of Conformity
Catalogs
CATALOG - Dataloggers
Catalogue Sheets - COMET Data Loggers
