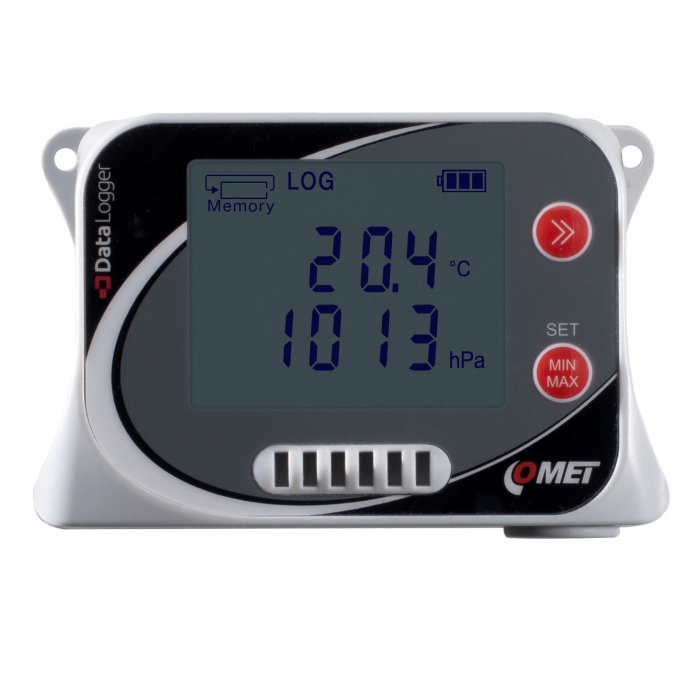

Temperature, humidity and pressure data logger with built-in sensors

Datalogger is designed to record temperature, humidity and atmospheric pressure.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

code

U4130
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -30 to +70 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ± 1.8 % RH

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +70 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR

Measuring range 600 to 1100 hPa

Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa

Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C

Channels internal temperature, humidity and pressure sensors

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

Recording interval adjustable from 1 s to 24 h

Display and alarm refresh adjustable 1 s, 10 s, 1 min

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power Lithium battery 3.6 V; size AA

Protection class IP54 electronics; IP30 sensors

Dimensions 61 x 93 x 32 mm

Weight (including batteries) approx. 120 g

Warranty 3 years
