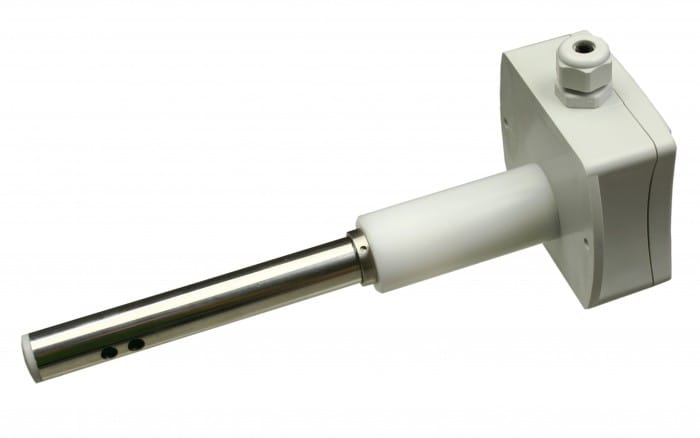

CO2 concentration transmitter with 0-10 V output, duct mount
Duct mount CO2 concentration transmitter with 0-10 V output.

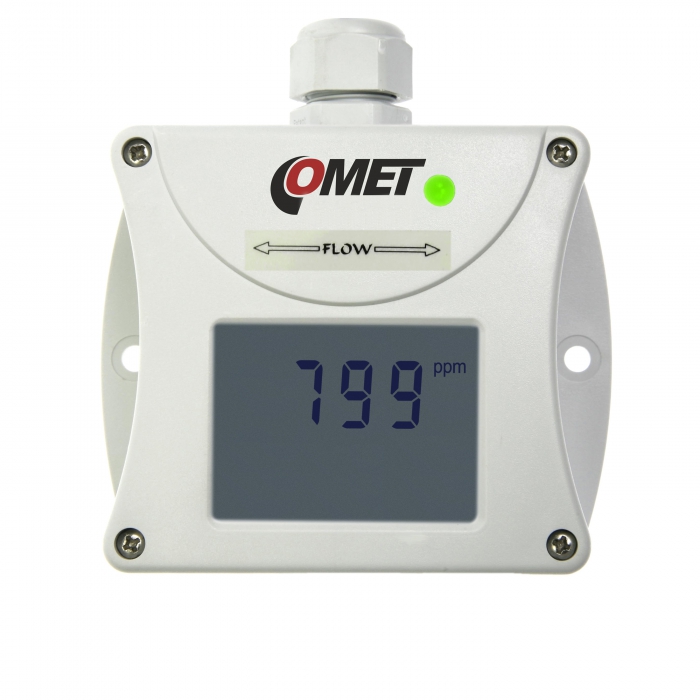

Green LED shines - CO2 concentration 0 to 1000 ppm
Yellow LED shines - CO2 concentration 1001 to 1200 ppm
Red LED shines - CO2 concentration 1201 ppm and more
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeT5245
-
Warranty3 years
Technical data
Measured value
CO2
CO2 SENSOR
Measuring range
0 to 2000 ppm
Accuracy
±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution
1 ppm
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
internal CO2 sensor
Output
0 - 10 V
Configuration of output
user adjustable from PC; measured range + value
Power
15-30 Vdc
Protection class
IP65 electronics; IP20 sesors
Dimensions
89 x 73 x 240 mm; stem length 130 mm
Weight
approx. 260 g
Warranty
3 years
Optional accessories and download
Accredited CO2 calibration
code
SLU015
Surcharge for internal CO2 sensor range adjustment
code
SLU113
cable for transmitter adjustment via USB port
code
SP003
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
PP4 Flat circular flange
code
PP4
PP90 Right-angled stainless steel flange
code
PP90
plastic gland for direct mounting of the humidity probe
code
SP004
Tool for easy connection to WAGO terminals 236 for analog output transmitters
code
SP005
Transmitter version with watertight male connector
code
TxxxxL
COMET presentation case for samples
code
BM512
COMET Magnetic Foldable Stand
code
PPO001
