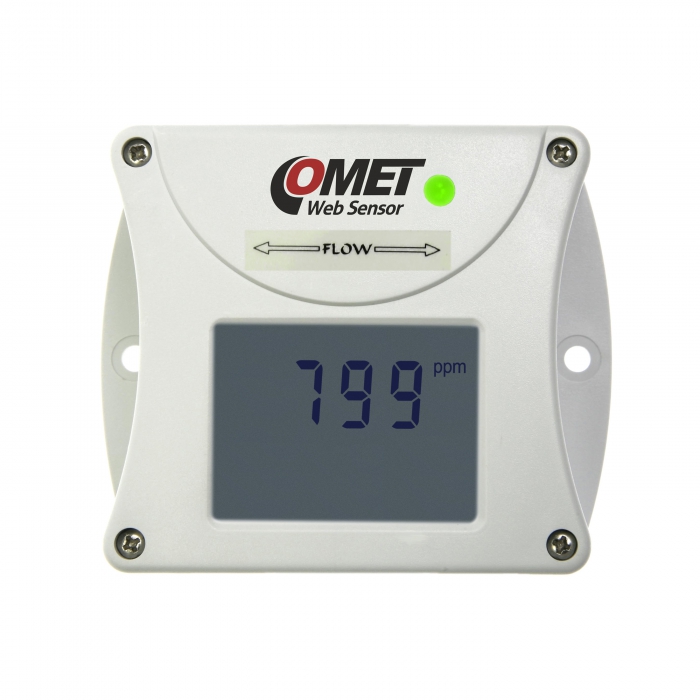

WebSensor - remote CO2 concentration with Ethernet interface, duct mount

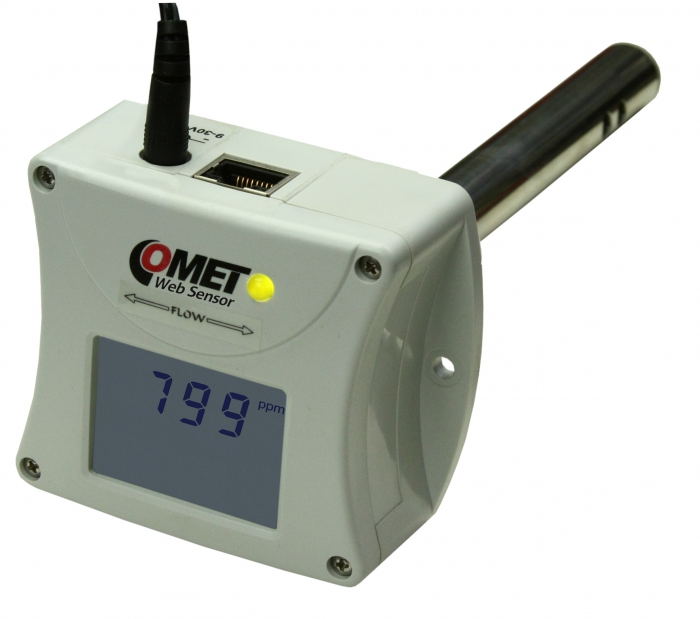

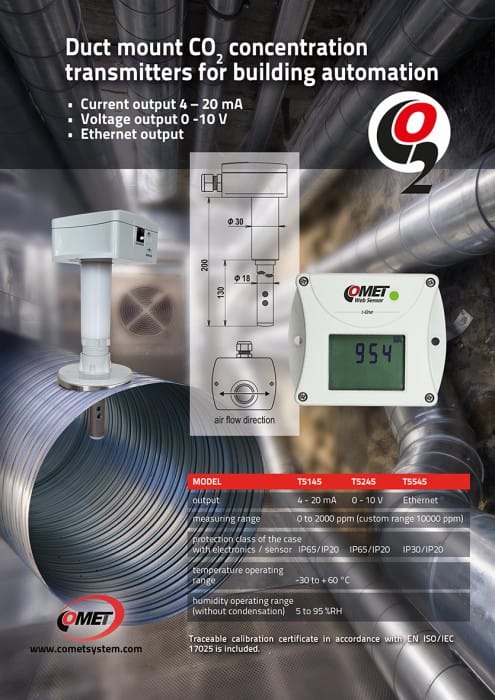

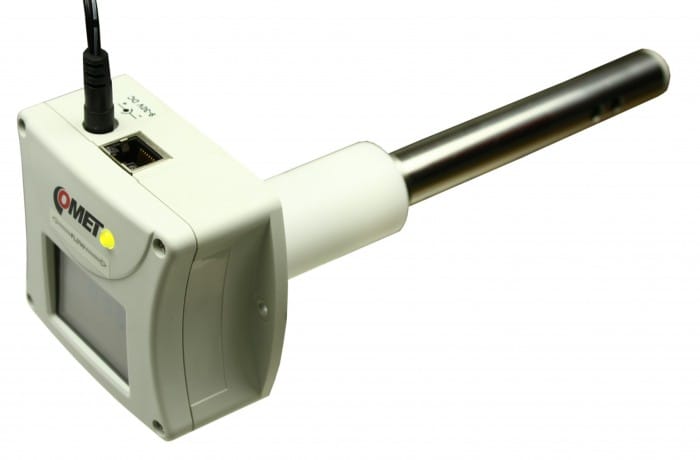

Duct mount CO2 concentration t-line WebSensor.
Web Sensor with built-in concentration CO2 sensor for duct mount.
A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.
The CO2 concentration is shown on the display or signaled by a color LED.

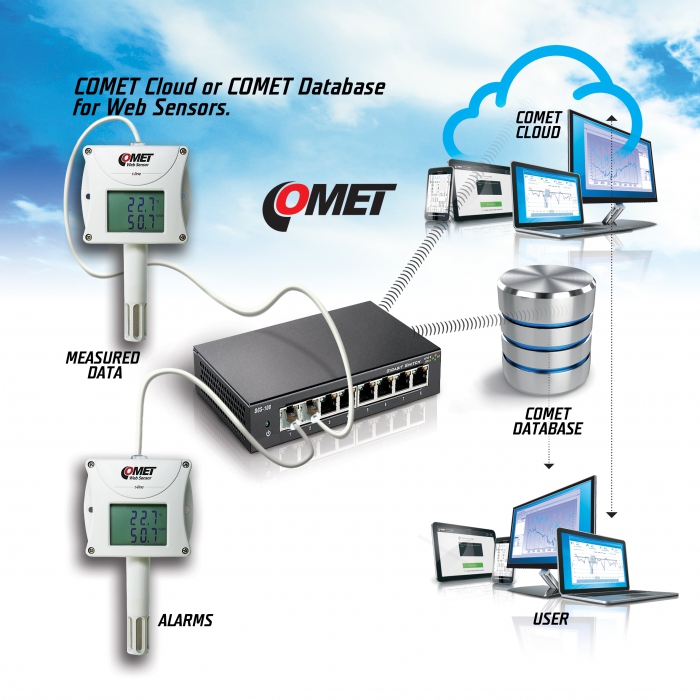

Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeT5545
-
Warranty3 years
Technical data
Measured value
CO2 SENSOR
GENERAL TECHNICAL DATA
Optional accessories and download
ac/dc adapter 230Vac to 12Vdc/1A, EU
ac/dc adapter 230Vac to 12Vdc/1A, UK
ac/dc adapter 230Vac to 12Vdc/1A, US
Accredited CO2 calibration
Surcharge for internal CO2 sensor range adjustment
KIT-GSM with modem
TL-POE10R - PoE splitter
300Mbps Wireless N Nano Router
COMET Database
COMET Cloud
COMET Cloud Lite for Android & iOS
Database Viewer for Comet Database
PP4 Flat circular flange
PP90 Right-angled stainless steel flange
plastic gland for direct mounting of the humidity probe
COMET presentation case for samples
COMET Magnetic Foldable Stand
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
3D model T5545
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
How to add WebSensor to COMET Cloud
MIB
Software development kit (SDK)
Catalogs
CATALOG - CO2
CATALOG - WebSensor with Ethernet output
Catalogue Sheets - COMET Premium WebSensors
