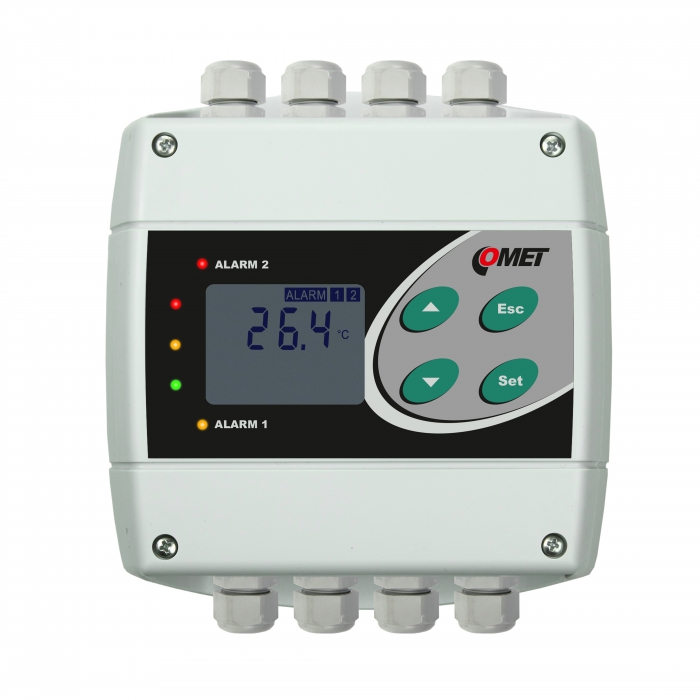

Temperature transmitter with RS232 output

Temperature transmitter for Pt1000 sensor with two relay outputs. Outdoor, indoor use.

For external Pt1000 temperature probe. Three two-state inputs.

code

H4331
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Two-state signal

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C

Accuracy ±0.2 °C

Resolution 0.1 °C

RELAY OUTPUTS

Quantity 2

Maximal voltage 50 V

Maximal current 2 A

Maximal power 60 VA

BINARY INPUTS

Quantity 3

Signal for binary inputy dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.

Minimum pulse duration on binary input 500 ms

Voltage across open contact < 3,3 V

Low voltage level 0 to +0,5 V

High voltage level +3,0 to +30 V

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C

Channels 1x external temperature probe

Acoustic alarm from built-in beeper - switchable

Output RS232

Range of humidity sensor temperature compensation all temperature range

Available temperature units degrees Celsius, degrees Fahrenheit

Communication protocol ModBus RTU and Advantech ADAM compatible protocol

Power 9-30 Vdc

Protection class IP65 electronics; IP40 sensors

Dimensions 136 x 213 x 45 mm; stem length 75mm

Weight approx. 350 g

Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/0, without connector

Temperature range: -80 to 200°C

code SN104

Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature range: -80 to 200°C

code SN105

Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature range: -80 to 200°C

code SN108

Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature range: -80 to 200°C

code SN113

Temperature probe 2061-250/0, without connector

Temperature range: -30 to 250°C

code SN147

Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature range: -30 to 250°C

code SN148

Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature range: -30 to 250°C

code SN151

Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature range: -30 to 250°C

code SN156

Temperature probe Pt1000TG7/0, without connector

Temperature range: -50 to 200°C

code SN164

Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature range: -50 to 200°C

code SN165

Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature range: -50 to 200°C

code SN166

Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature range: -50 to 200°C

code SN167

Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature range: -30 to 220°C

code SN168

Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature range: -30 to 150°C

code SN169

Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature range: -30 to 130°C

code SN170

Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature range: -30 to 150°C

code SN175

Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature range: -50 to 200°C

code SN178

Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature range: -50 to 200°C

code SN179

Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature range: -50 to 200°C

code SN180

Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature range: -50 to 200°C

code SN181

Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature range: -30 to 130°C

code SN182

Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature range: -30 to 130°C

code SN183

Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature range: -30 to 80°C

code SN185

Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature range: -30 to 80°C

code SN186

Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature range: -30 to 80°C

code SN187

Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature range: -30 to 80°C

code SN188

Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature range: -30 to 80°C

code SN199

Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature range: -30 to 80°C

code SN200

Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature range: -30 to 80°C

code SN201

Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature range: -30 to 80°C

code SN202

Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature range: -30 to 80°C

code SN203

Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature range: -30 to 80°C

code SN204

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C

code SN205

Stick-in probe 2091-250/0, without connector, cable 1 meter

Temperature range: -50 to 250°C

code SN210

Stick-in probe 2091-250/0, without connector, cable 2 meters

Temperature range: -50 to 250°C

code SN211

Stick-in probe 2091-250/0, without connector, cable 5 meters

Temperature range: -50 to 250°C

code SN212

Stick-in probe 2091-250/0, without connector, cable 10 meters

Temperature range: -50 to 250°C

code SN213

Special probe 2071-80/0, without connector

Temperature range: -30 to 80°C

code SN214

Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature range: -50 to 200°C

code SN232

Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature range: -50 to 200°C

code SN233

Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature range: -50 to 200°C

code SN234

Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature range: -190 to 150°C

code SN239

Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature range: -190 to 150°C

code SN240

Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature range: -190 to 150°C

code SN241

Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters

Temperature range: -190 to 150°C

code SN242

Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature range: -50 to 400°C

Discontinued

Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature range: -50 to 400°C

Discontinued

Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature range: -50 to 400°C

Discontinued

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C

code SN252

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C

code SN254

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C

code SN255

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C

code SN256

Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature range: -50 to 400°C

Discontinued

Ambient temperature probe, 201-80/C

Temperature range: -30 to 80°C

code SN258

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C

code SN263

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C

code SN264

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C

code SN265

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C

code SN266

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C

code SN267

Temperature probe Pt1000TR050M/0, without connector, cable 1 meter

Temperature range: -50 to 400°C

code SN270

Temperature probe Pt1000TR050M/0, without connector, cable 2 meters

Temperature range: -50 to 400°C

code SN271

Temperature probe Pt1000TR050M/0, without connector, cable 5 meters

Temperature range: -50 to 400°C

code SN272

Temperature probe Pt1000TR050M/0, without connector, cable 10 meters

Temperature range: -50 to 400°C

code SN273

Ac/dc adapter 12V/450mA stabilized, EU

code A1510eu

Ac/dc adapter 12V/450mA stabilized, UK

code A1510uk

Ac/dc adapter 12V/450mA stabilized, US

code A1510us

Transducer USB/RS232 complete

code MP006

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP103

Motion detector JS20

code JS20

The LD-12 flood detector

code LD12

Magnetic door contact SA-200-A

code SA200A

Magnetic door contact with cable length 10m

code SA200A-10

Magnetic door contact with cable length 15m

code SA200A-15

Magnetic door contact with cable length 2m

code SA200A-2

Magnetic door contact with cable length 20m

code SA200A-20

Magnetic door contact with cable length 30m

code SA200A-30

Magnetic door contact with cable length 5m

code SA200A-5

The optical smoke detector SD-283ST

code SD280

Power detector SP008

code SP008

Tool for easy connection to WAGO terminals 233 for serial output transmitters

code SP006

COMET presentation case for samples

code BM512

COMET Magnetic Foldable Stand

code PPO001
