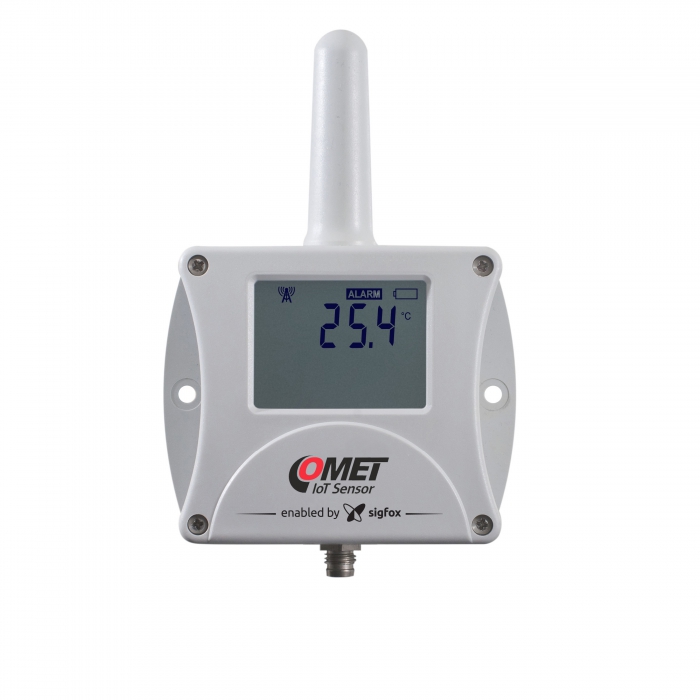

Wireless IoT thermometer for external probe, Sigfox

The device measures the temperature from an external Pt1000 probe on the cable - you can choose it from an optional accessory.

The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.

The instrument can monitor up to 2 alarm limits of the measured variable. Exceeding these limits is indicated by sending an emergency message. COMET Cloud transmits this alarm message via e-mail to the selected user. The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max. 10 min).

Highlights:

wireless transmission of measured values and alarm states
battery power with low battery indication (battery life 4 months to 7 years)
external power with optional accessories

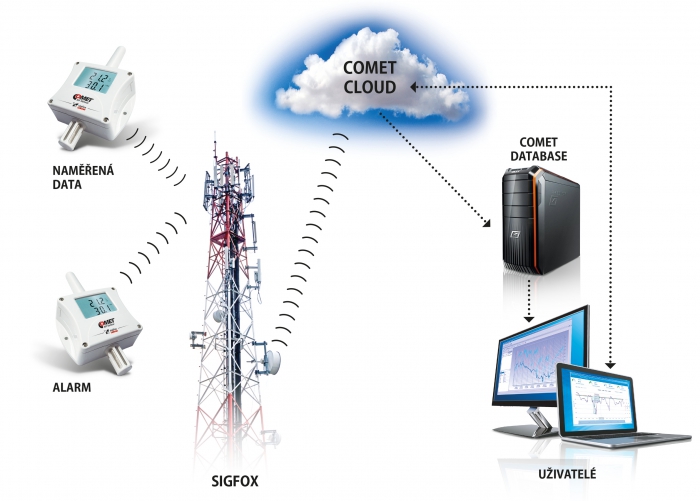

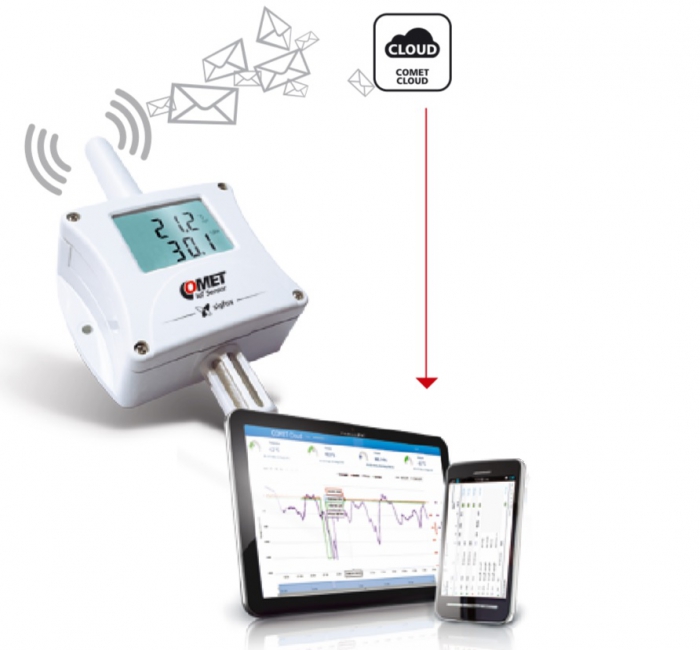

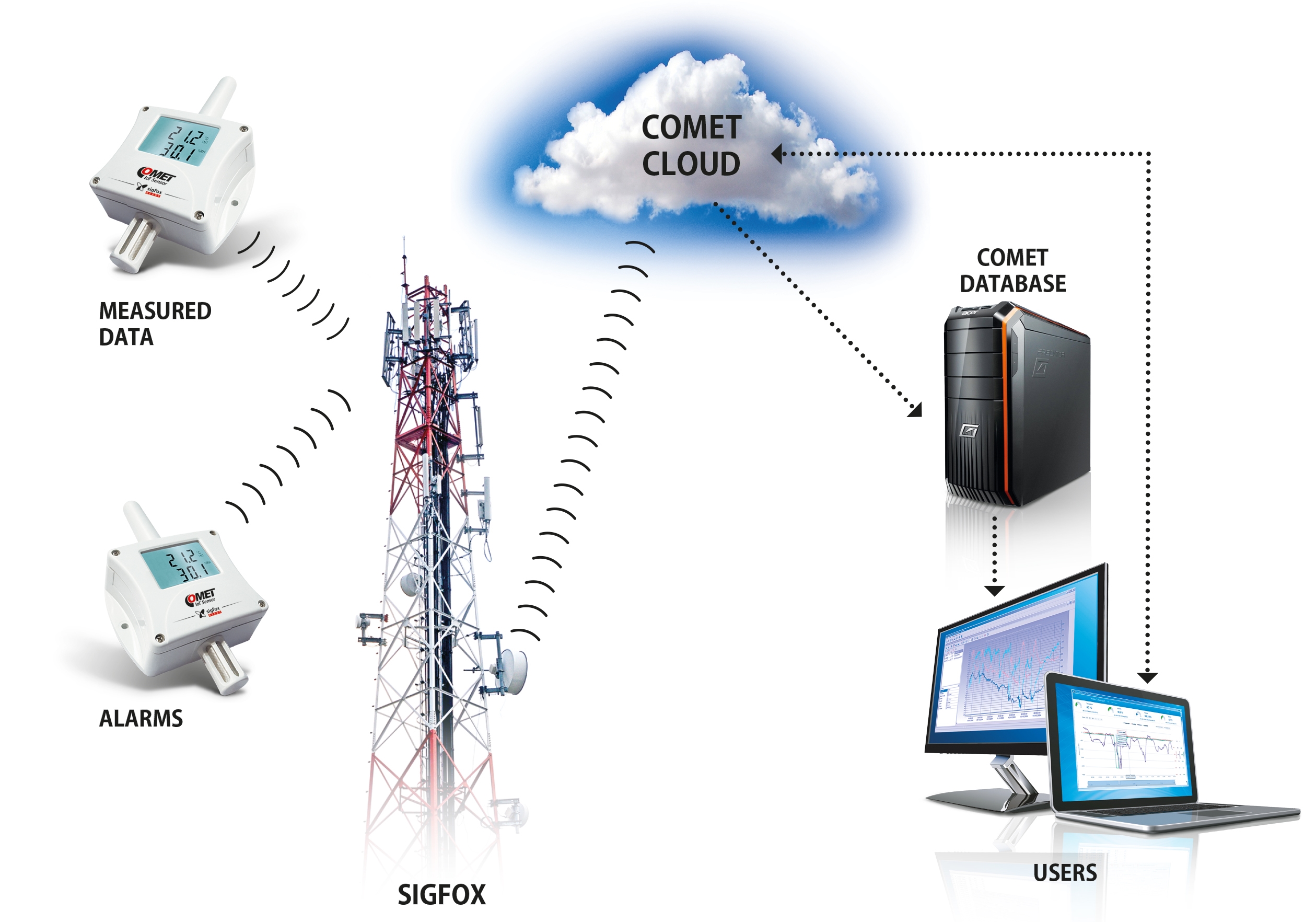

remote setting of the device from COMET Cloud (maximum once a day)
IP65
Traceable calibration certificate in accordance with EN ISO / IEC 17025

The availability of Sigfox network in a particular location

Check your Sigfox network availability before you buy your device. COMET devices in the Sigfox network can be used anywhere in the RC1 zone. Learn more about Sigfox (RC) Radio Zones.

code

W0811
Warranty

3 years

Add to quote

Included in delivery:

EXTERNAL PROBES ARE NOT INCLUDED IN DELIVERY

When installing into the refrigerator, we recommend acquiring the combination of the sensor and an external temperature probe. In case of using a sensor with a built-in sensor, we cannot guarantee reliable communication.

Instruction Manual Datasheet

Catalog

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C

Accuracy ±0.2 °C in the range -90 to +100 °C; ±0.2 % from reading from +100 to +260 °C

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 10 minutes

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C

Channels 1x external temperature probe

Message transmission interval adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours

Alarm message sending interval 10 minutes

Operating frequency 868 MHz

Maximum transmission power 25mW

Sigfox radiation class 0U

Radio configuration zone RC1 (operation is possible in Europe, Iran, Oman and South Africa)

Typical range of transmitter 50 km in the field, 3 km in the city

Power Lithium battery 3.6 V, AA size

Protection class IP65

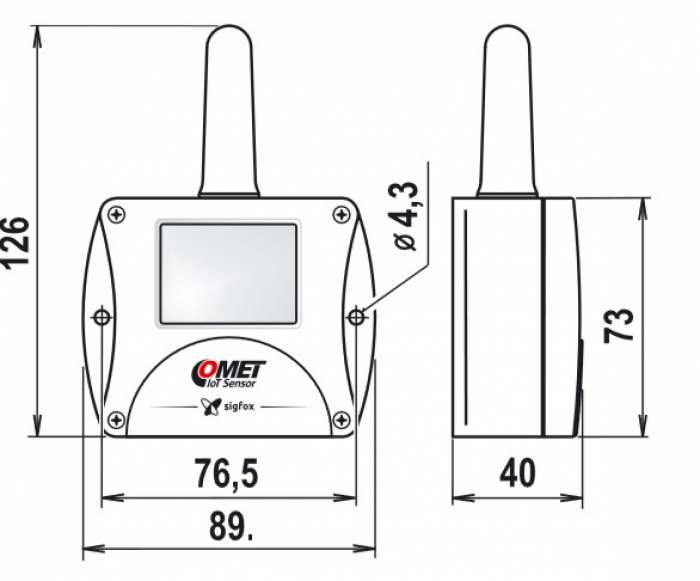

Dimensions 126 x 89 x 40mm

Weight (including batteries) 150g

Warranty 3 years

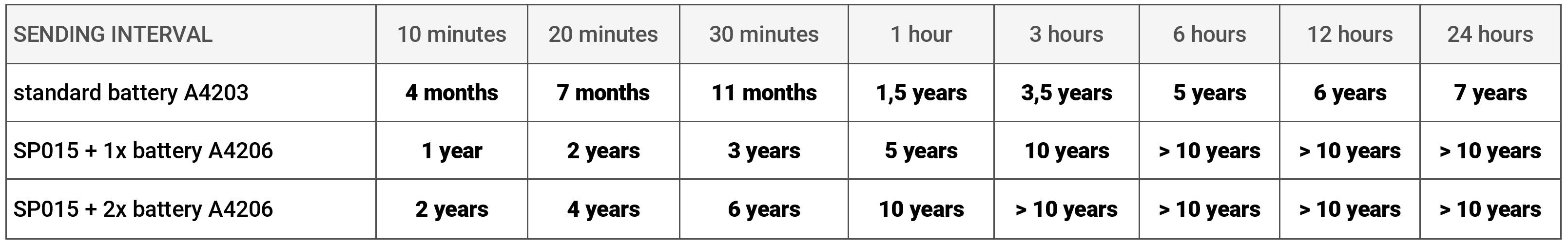

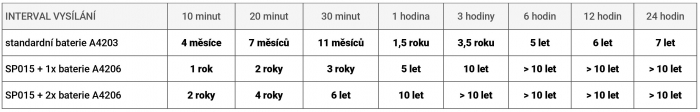

Battery lifetime

Sending interval	10 minutes	20 minutes	30 minutes	1 hour	3 hours	6 hours	12 hours	24 hours
lithium battery A4203 - 2200mAh	4 months	7 months	11 months	1,5 years	3,5 years	5 years	6 years	7 years
battery holder (SP015) + 1x lithium battery A4206 - 8500mAh	1 year	2 years	3 years	5 years	10 years	> 10 years	> 10 years	> 10 years
battery holder (SP015) + 2x lithium battery A4206 - 8500mAh	2 years	4 years	6 years	10 years	> 10 years	> 10 years	> 10 years	> 10 years

Download

Optional accessories and download

Temperature probe Pt1000TG8/E, ELKA connector

Temperature range: -80 to 200°C

code SN104E

Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature range: -80 to 200°C

code SN105E

Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature range: -80 to 200°C

code SN108E

Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature range: -80 to 200°C

code SN113E

Temperature probe Pt1000TG7/E, ELKA connector

Temperature range: -50 to 200°C

code SN164E

Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN165E

Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN166E

Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN167E

Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 220°C

code SN168E

Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C

code SN169E

Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature range: -30 to 130°C

code SN170E

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C

code SN171

Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C

code SN175E

Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature range: -50 to 200°C

code SN178E

Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN179E

Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN180E

Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN181E

Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature range: -30 to 130°C

code SN182E

Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature range: -30 to 130°C

code SN183E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C

code SN185E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C

code SN186E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C

code SN187E

Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C

code SN188E

Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C

code SN199E

Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C

code SN200E

Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C

code SN201E

Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C

code SN202E

Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature range: -30 to 80°C

code SN203E

Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature range: -30 to 80°C

code SN204E

Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Temperature range: -50 to 250°C

code SN210E

Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Temperature range: -50 to 250°C

code SN211E

Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Temperature range: -50 to 250°C

code SN212E

Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Temperature range: -50 to 250°C

code SN213E

Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C

code SN232E

Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C

code SN233E

Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C

code SN234E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Temperature range: -190 to 150°C

code SN239E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Temperature range: -190 to 150°C

code SN240E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Temperature range: -190 to 150°C

code SN241E

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Temperature range: -190 to 150°C

code SN242E

Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C

Discontinued

Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C

Discontinued

Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C

Discontinued

Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Temperature range: -50 to 200°C

code SN252E

Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C

Discontinued

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature range: -30 to 180°C

code SN263E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C

code SN264E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C

code SN265E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C

code SN266E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C

code SN267E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C

code SN270E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C

code SN271E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C

code SN272E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C

code SN273E

Lithium battery 3,6V/AA

code A4203

Lithium battery 3,6V/C

code A4206

Adapter for external supply of IoT sensor with radio output to Sigfox network

code SP014

Holder for 3.6 V lithium battery

code SP015

Holder for 3.6 V lithium battery with magnets

code SP015M

Accredited temperature calibration

code SLU001

Sigfox Access Station Micro

code SMBS-T4

cable for transmitter adjustment via USB port

code SP003

Holder for Sigfox sensors

code SP017

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP102

COMET Cloud

code cloud

COMET Cloud Lite for Android & iOS

code cloud_app

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000

COMET presentation case for samples

code BM512

COMET Magnetic Foldable Stand

code PPO001

Related products

COMET Cloud

code cloud

Wireless thermometer with built-in sensor, Sigfox IoT

code W0810

Wireless thermometer, hygrometer barometer, Sigfox IoT

code W7810

Wireless thermometer with three-channels, IoT Sigfox

code W0832

Wireless thermometer with two two-state inputs, Sigfox IoT

code W0850

Wireless thermometer, hygrometer, Sigfox IoT

code W3810

Wireless thermometer, hygrometer for external probe, Sigfox IoT

code W3811

Wireless thermometer, hygrometer, barometer for external probe, Sigfox IoT

code W7811

IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 2G modem

code U4440M

Reference

Monitoring of climatic conditions in the church for the repair and tuning of the new organ in St. Vitus Church in Prague

Type of application: Building Management - HVAC Server rooms and data centers Culture Weather monitoring

Temperature measurement in the composting and sanitation box

Type of application: Industry Agriculture

Needle stainless steel probes for coal stockpiles

Type of application: Industry

Wireless monitoring of N2 levels in dewars

Type of application: Industry Healthcare and Laboratory Agriculture

Installation of IoT Wireless dtaloggers in hematology and biochemistry

Type of application: Healthcare and Laboratory

Realized application of COMET wireless IoT sensors in hospital Povazska Bystrica

Type of application: Healthcare and Laboratory

Monitoring of temperature and humidity of national cultural monument Libušín

Type of application: SOHO (Small Office and Home Office) Industry Building Management - HVAC Culture

Monitoring of concrete temperature during aging

Type of application: Industry

Monitoring of temperature and humidity in depository rooms

Type of application: Building Management - HVAC Server rooms and data centers Culture

Diagnostic work before reconstruction of the Legion Bridge in Prague

Type of application: Industry Building Management - HVAC

Baylor Labs Uganda

Type of application: Industry Healthcare and Laboratory

HELUZ - great bricks for your house

Type of application: Industry Building Management - HVAC

Humidity monitoring in family houses

Type of application: Building Management - HVAC

Monitoring of temperature and humidity by means of wireless WiFi network

Type of application: Building Management - HVAC Culture

Prague Castle

Type of application: Building Management - HVAC Server rooms and data centers Culture

ZOO Plzen

Type of application: SOHO (Small Office and Home Office) Agriculture Weather monitoring

Masaryk University in Brno

Type of application: Industry Building Management - HVAC Weather monitoring

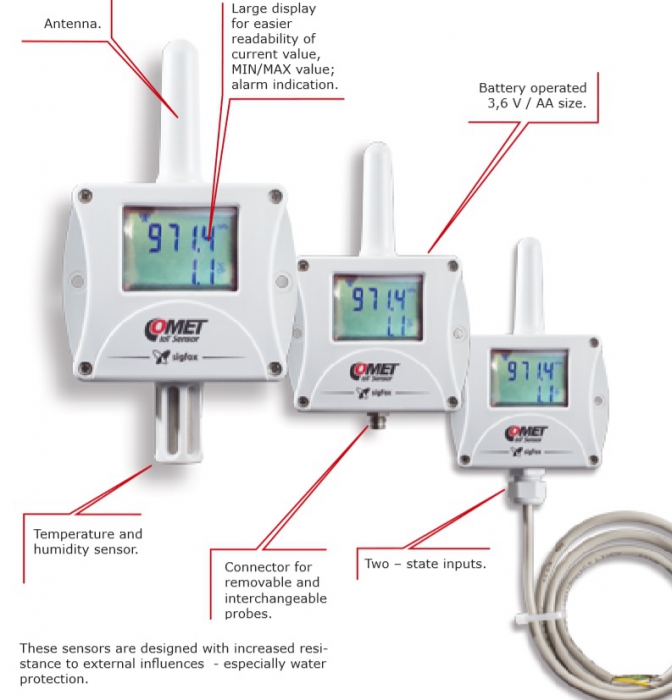

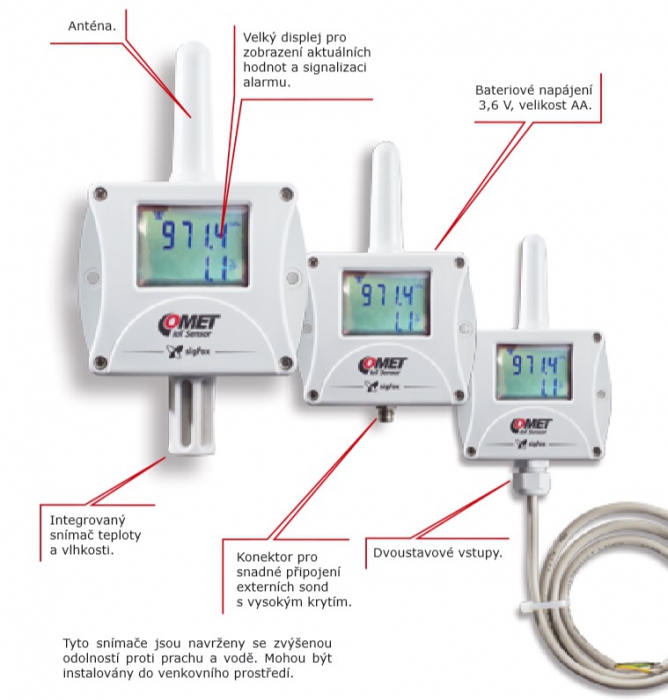

Wireless IoT thermometer for external probe, Sigfox

Technical data

Measured value

TEMPERATURE SENSOR - external probe Pt1000

GENERAL TECHNICAL DATA

Battery lifetime

Optional accessories and download

Software

Others

Manuals

Catalogs

Related products

Reference

Monitoring of climatic conditions in the church for the repair and tuning of the new organ in St. Vitus Church in Prague

Temperature measurement in the composting and sanitation box

Needle stainless steel probes for coal stockpiles

Wireless monitoring of N2 levels in dewars

Installation of IoT Wireless dtaloggers in hematology and biochemistry

Realized application of COMET wireless IoT sensors in hospital Povazska Bystrica

Monitoring of temperature and humidity of national cultural monument Libušín

Monitoring of concrete temperature during aging

Monitoring of temperature and humidity in depository rooms

Diagnostic work before reconstruction of the Legion Bridge in Prague

Baylor Labs Uganda

HELUZ - great bricks for your house

Humidity monitoring in family houses

Monitoring of temperature and humidity by means of wireless WiFi network

Prague Castle

ZOO Plzen

Masaryk University in Brno

COMET Cloud - video

COMET Cloud - demo

Monitorinig during transport - video
