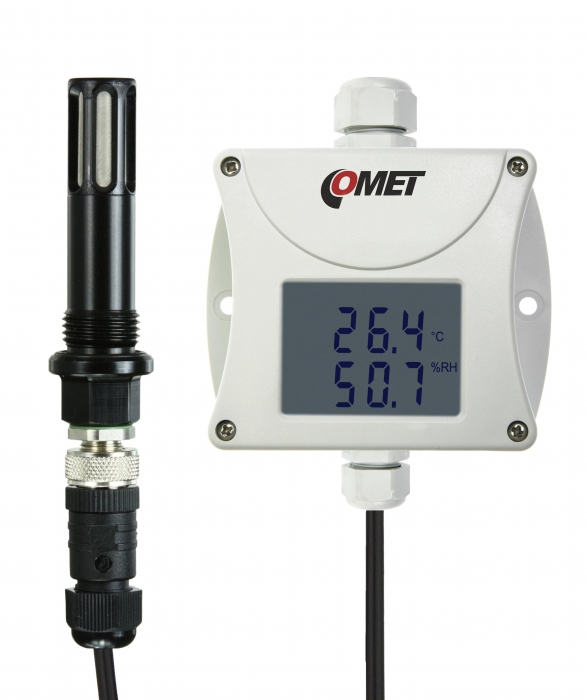

Compressed air RH+T+Tdp sensor with 4 meters cable and 0-10V output

Humidity, temperature transmitter. T+RH probe from hard anodized duralumin for compressed air up to 25 bars. Outdoor, indoor use.

Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

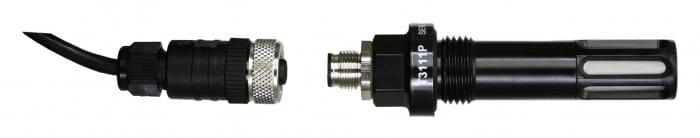

The device is supplied with T+RH probe with 4 meters cable.

NEW - AC Power - now also powered from 24 Vac !

code

T0211P-4
Warranty

3 years

Add to quote

Product variants

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +105 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±2.5 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C
±2.0°C for dew point temperature 0°C at ambient temperature +25°C
±3.0°C for dew point temperature -10°C at ambient temperature +25°C
±6.0°C for dew point temperature -20°C at ambient temperature +25°C

Resolution 0.1 °C

MEASURING THE MOISTURE OF COMPRESSED AIR

Measuring range up to 25 bars

Air flow velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C

Channels 1x connectable temperature+humidity probe

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output 0 - 10 V

Range of humidity sensor temperature compensation all temperature range

Configuration of output user adjustable from PC; measured range + value

Power 15-30 Vdc; 24 Vac

Protection class IP65 electronics; IP40 sensors

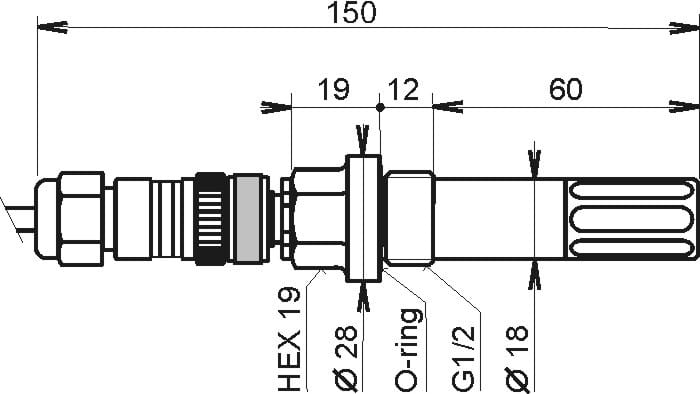

Dimensions 88,5 x 114 x 39,5 mm; length/diameter of external probe 88/18 mm

External probe cable length 4 meters

Weight approx. 210 g

Warranty 3 years
