IoT wireless thermometer, hygrometer, LoRaWAN network

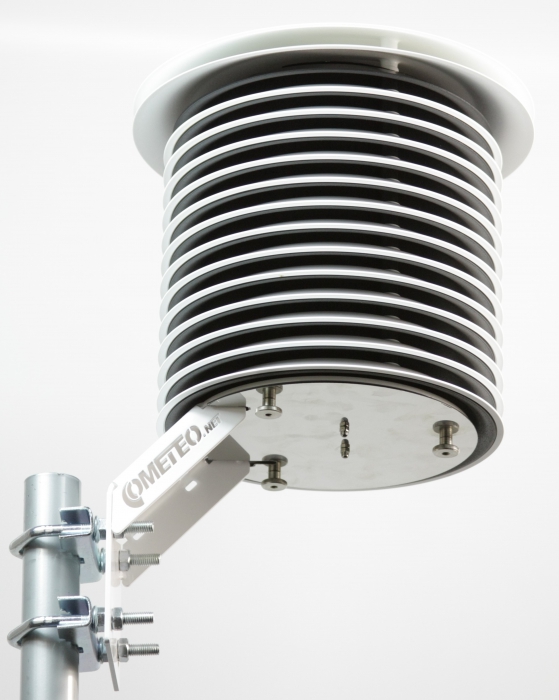

The W3910 sensor with LoRaWAN network output measures the temperature and humidity from the built-in internal sensor and can be installed directly in the measured environment thanks to its IP65-rated enclosure. LoRa devices are powered by a replaceable battery with a lifespan of up to 10 years (3 years standard). External power with optional accessories is also available. The sensor can be used with a suitable sensor cap even in more demanding conditions.

Measured values are transmitted wirelessly at adjustable intervals (from 5 minutes to 24 hours) to the COMET Cloud storage, where they are accessible to users via computer or mobile device. The sensors offer remote configuration from the COMET Cloud and feature the capability to monitor up to two alarm thresholds, with any exceedance signaled by an alert sent to the user.

Key Features

Wireless transmission of measured values and alarm states
Battery-powered with low battery indicator (battery life up to 10 years) and external power option
Remote device configuration via COMET Cloud
IP65-rated enclosure
Calibration certificate with declared metrological traceability of standards according to CSN EN ISO/IEC 17025
Preconfigured Gateway available as an accessory at extra cost. For ease of use, we offer the pre-configured LoRaWAN Gateway SP041, which is fully ready for communication with COMET Cloud and our sensors. This option simplifies the setup process and saves time for users

code

W3910
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +60 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 10 minutes

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±1.8 % RH from 0 to 90 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +60 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C

Channels internal temperature and humidity sensor

Message transmission interval adjustable 5-10-15-20-30 minutes, 1-2-3-4-6-8-12-24 hours

Operating frequency Europe 863-870 MHz

Maximum transmission power 25 mW (14 dBm)

Typical range of transmitter 15 km in the field, 2 km in the city (sensor in building)

Antenna internal, gain 2,15 dBi

Maximum receiver sensitivity -136 dBm @BW=125 kHz, SF=12

Power Lithium battery 3.6 V, AA size

Protection class IP65

Dimensions 126 x 89 x 40mm

Weight (including batteries) 150g

Warranty 3 years

Countries using the LoRaWAN EU 868 frequency plan

Europe:

Albania, Andorra, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Montenegro, Netherlands, North Macedonia, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom (UK), VaticanCity (HolySee)

Africa:

Angola, Botswana, Democratic Republic of the Congo, Eswatini (formerly Swaziland), Lesotho, Madagascar, Malawi, Mauritius, Mozambique, Namibia, Seychelles, South Africa, Tanzania, Zambia, Zimbabwe

Asia:

Bahrain, Philippines, Saudi Arabia, United Arab Emirates (UAE)
