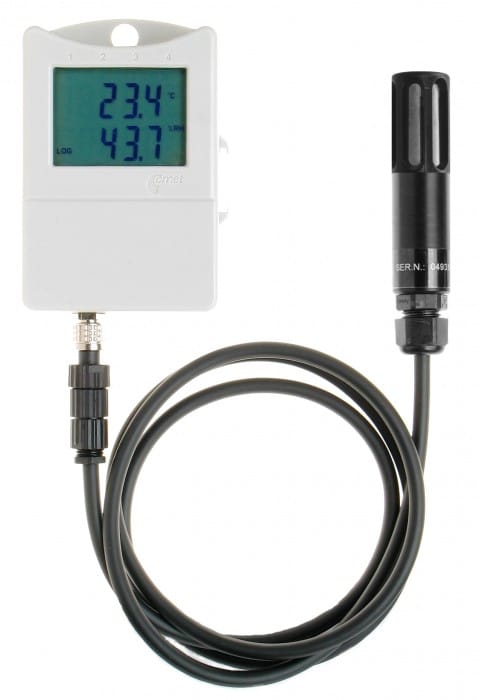

Thermo-hygrometer with external probe, cable 1 meter
Data logger is designed for record of temperature and humidity. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper communication adapter.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.
The device is supplied with T+RH probe with 1m cable.
-
codeS3121
-
Warranty3 years
Technical data
TEMPERATURE SENSOR
Measuring range
-30 to +105 °C
Accuracy
±0.4 °C (-30 to +80 °C); ±0.5 °C (over +80 °C)
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0,1 % RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
electronics -30 to +70 °C, external probe -30 to +105 °C
Channels
1x connectable temperature+humidity probe
Memory
32,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Display and alarm refresh
each 10 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
lithium battery 3.6 V; size AA
Battery life
6 years
Protection class
IP67 electronics; IP30 external probe
Dimensions (without connectors)
93 x 64 x 29 mm; length/diameter of external probe 88/18 mm
External probe cable length
1 meter
Weight (including batteries)
approx. 115 g
Warranty
3 years
