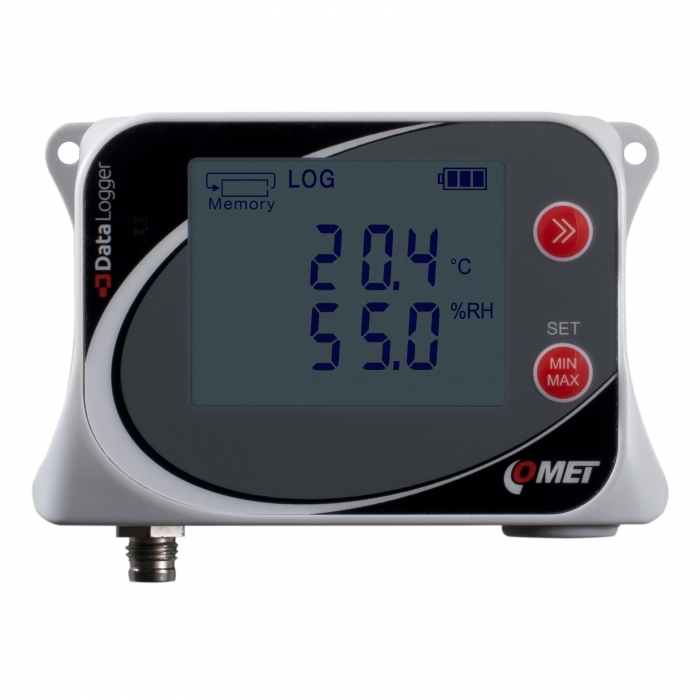

Temperature and humidity data logger for external probe

Data logger is designed to record temperature and humidity from external probe.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The temperature and humidity probe is not included in delivery, probe of the appropriate length and design you can choose in optional accessories.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

code

U3121
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 8 min

HUMIDITY SENSOR

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1% RH

DEW POINT

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C

Channels 1x connectable temperature+humidity probe

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

Recording interval adjustable from 1 s to 24 h

Display and alarm refresh adjustable 1 s, 10 s, 1 min

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power Lithium battery 3.6 V, size AA

Protection class IP67

Dimensions 61 x 93 x 32 mm

Weight (including batteries) approx. 120 g

Warranty 3 years

Optional accessories and download

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C

code DIGIH/E-1

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C

code DIGIH/E-2

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C

code DIGIH/E-5

Digital temperature/humidity probe DIGIL/E, ELKA connector

Temperature range: -20 to 80°C

code DIGIL/E

Digital temperature/humidity probe DIGIL/E-1, ELKA connector, cable 1 meter

Temperature range: -30 to 105°C

code DIGIL/E-1

Digital temperature/humidity probe DIGIL/E-10, ELKA connector, cable 10 meters

Temperature range: -30 to 105°C

code DIGIL/E-10

Digital temperature/humidity probe DIGIL/E-15, ELKA connector, cable 15 meters

Temperature range: -30 to 105°C

code DIGIL/E-15

Digital temperature/humidity probe DIGIL/E-2, ELKA connector, cable 2 meters

Temperature range: -30 to 105°C

code DIGIL/E-2

Digital temperature/humidity probe DIGIL/E-5, ELKA connector, cable 5 meters

Temperature range: -30 to 105°C

code DIGIL/E-5

Digital temperature/humidity probe DIGIS/E, ELKA connector

Temperature range: -20 to 80°C

code DIGIS/E

Digital temperature/humidity probe DIGIS/E-1, ELKA connector, cable 1 meter

Temperature range: -10 to 60°C

code DIGIS/E-1

Digital temperature/humidity probe DIGIS/E-10, ELKA connector, cable 10 meters

Temperature range: -10 to 60°C

code DIGIS/E-10

Digital temperature/humidity probe DIGIS/E-15, ELKA connector, cable 15 meters

Temperature range: -10 to 60°C

code DIGIS/E-15

Digital temperature/humidity probe DIGIS/E-2, ELKA connector, cable 2 meters

Temperature range: -10 to 60°C

code DIGIS/E-2

Digital temperature/humidity probe DIGIS/E-5, ELKA connector, cable 5 meters

Temperature range: -10 to 60°C

code DIGIS/E-5

Lithium battery 3,6V/AA

code A4203

Accredited temperature and relative humidity calibration

code SLU003

USB-C cable, 1 meter

code MP053

Wall holder for datalogger

code LP100

Holder for mounting the Datalogger "U" on magnetic surfaces

code LP102

COMET Database

code CDB

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV

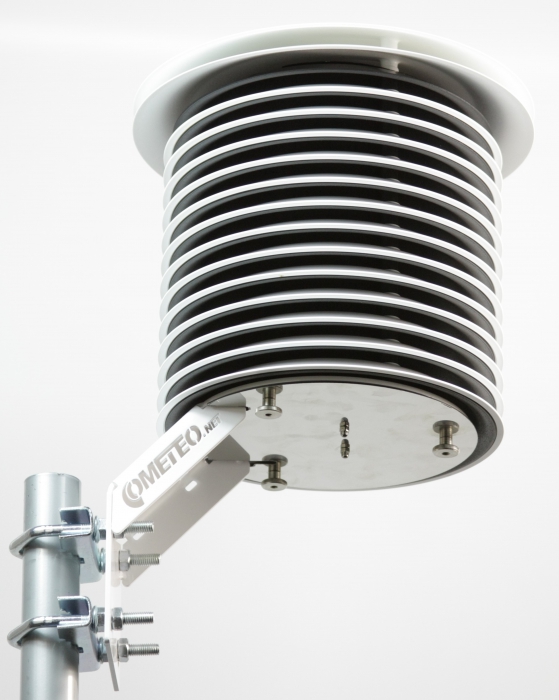

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000

COMET presentation case for samples

code BM512

COMET Magnetic Foldable Stand

code PPO001
