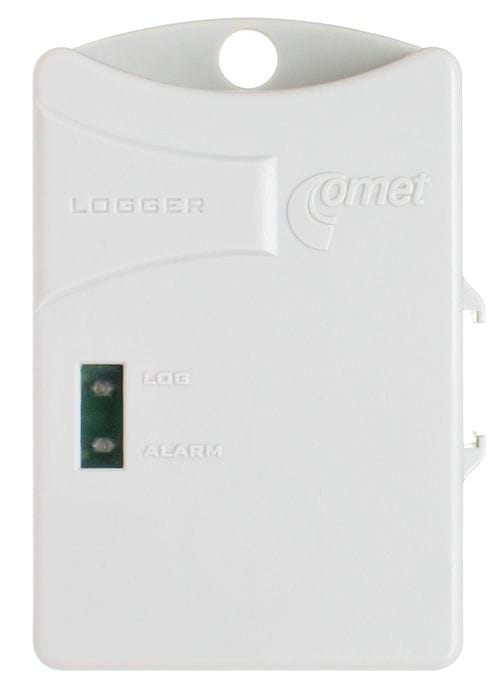

Datalogging Thermometer
Temperature datalogger is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232 or GSM.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.
-
codeR0110
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-40 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-40 to +80 °C
Channels
internal temperature sensor
Memory
32,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Display and alarm refresh
each 10 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
lithium battery 3.6 V; size AA
Battery life
7 years
Protection class
IP67
Dimensions
93 x 64 x 27 mm
Weight (including batteries)
approx. 100 g
Warranty
3 years
Optional accessories and download
Lithium battery 3,6V/AA
code
A4203
Accredited temperature calibration
code
SLU001
KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers
code
KIT-GSM-L
USB adapter
code
LP003
Start/stop magnet
code
LP004
COM adapter with protection IP65
code
LP012
GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families
code
LP040
Transducer USB/RS232 complete
code
MP006
Antenna for GSM modem
code
MP009/1
Wall holder for GPRS modem
code
MP036
DIN Rail 35mm holder for GPRS modem
code
MP037
Communication cable for GSM modem
code
QMS2901
One time fee for using M2M server - applied for each data logger with modem
code
SLU302
wall holder for datalogger
code
F9000
Self Adhesive Dual Lock
code
MD036
COMET Database
code
CDB
Software for COMET TPrints and GSM modems
code
SWR001
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Android downloder from S/R dataloggers
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Dataloggers
