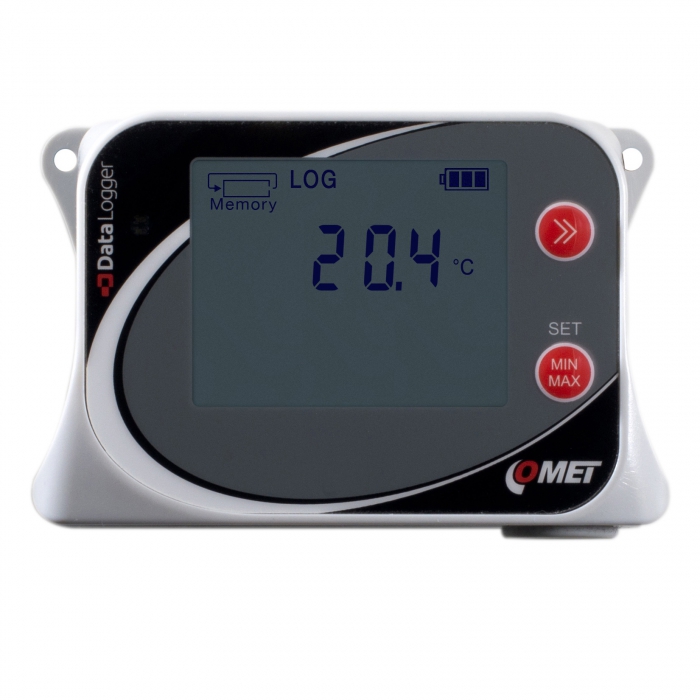

Temperature data logger with built-in sensor

Datalogger is designed for temperature recording.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.
In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

code

U0110
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +70 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 15 min

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C

Channels internal temperature sensor

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

Recording interval adjustable from 1 s to 24 h

Display and alarm refresh adjustable 1 s, 10 s, 1 min

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power Lithium battery 3.6 V, size AA

Protection class IP67

Dimensions 61 x 93 x 32 mm

Weight (including batteries) approx. 120 g

Warranty 3 years
