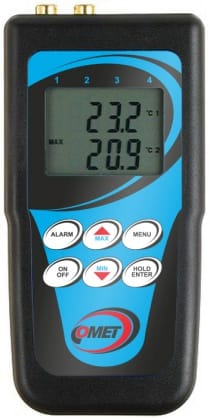

Dual channel thermometer Ni1000/Pt1000
Thermometer is designed for direct measurement and datalogging of temperature into the internal non-volatile memory.
Free PC program enables to transfer recorded data to the personal computer for consequent evaluation. LCD backlight.
Instrument is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.
-
codeD0221
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +500 °C
Accuracy
±0.3 °C od -50 to +100 °C;
±0.3 % from reading from +100 to +500 °C;
±0.6 % from reading from -200 do -50 °C
±0.3 % from reading from +100 to +500 °C;
±0.6 % from reading from -200 do -50 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +65 °C
Channels
2x external temperature probe
Acoustic signalization + backlit LCD
YES
Memory
16,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Measuring interval and display reading refresh
0.7 to 5 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life
approx. 6 months
Protection class
IP20
Dimensions (without connectors)
141 x 71 x 27 mm
Weight (including batteries)
approx. 150 g
Warranty
3 years
Optional accessories and download
Temperature probe Pt1000TG8/C, CINCH connector
Temperature range: -80 to 200°C
code
SN104C
Temperature probe Pt1000TG8/C, CINCH connector, cable 2 meters
Temperature range: -80 to 200°C
code
SN105C
Temperature probe Pt1000TG8/C, CINCH connector, cable 5 meters
Temperature range: -80 to 200°C
code
SN108C
Temperature probe Pt1000TG8/C, CINCH connector, cable 10 meters
Temperature range: -80 to 200°C
code
SN113C
Temperature probe Pt1000TG7/C, CINCH connector
Temperature range: -50 to 200°C
code
SN164C
Temperature probe Pt1000TG7/C, CINCH connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN165C
Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN166C
Temperature probe Pt1000TG7/C, CINCH connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN167C
Temperature probe 2304-220/C, CINCH connector, cable 1 meter
Temperature range: -30 to 220°C
code
SN168C
Temperature probe 2021-150/C, CINCH connector, cable 1 meter
Temperature range: -30 to 150°C
code
SN169C
Temperature probe PTS350A-2/C, CINCH connector, cable 2 meters
Temperature range: -30 to 130°C
code
SN170C
Temperature probe 2034-220/C, CINCH connector, cable 1 meter
Temperature range: -30 to 150°C
code
SN175C
Ambient temperature probe, 200-80/C
Temperature range: -30 to 80°C
code
SN177
Temperature probe 2061-200/C, CINCH connector, cable 1 meter
Temperature range: -50 to 200°C
code
SN178C
Temperature probe 2061-200/C, CINCH connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN179C
Temperature probe 2061-200/C, CINCH connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN180C
Temperature probe 2061-200/C, CINCH connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN181C
Temperature probe PTS350A-5/C, CINCH connector, cable 5 meters
Temperature range: -30 to 130°C
code
SN182C
Temperature probe PTS350A-10/C, CINCH connector, cable 10 meters
Temperature range: -30 to 130°C
code
SN183C
Temperature probe Pt1000TGL40/C, CINCH connector, cable 1 meter
Temperature range: -30 to 80°C
code
SN185C
Temperature probe Pt1000TGL40/C, CINCH connector, cable 2 meters
Temperature range: -30 to 80°C
code
SN186C
Temperature probe Pt1000TGL40/C, CINCH connector, cable 5 meters
Temperature range: -30 to 80°C
code
SN187C
Temperature probe Pt1000TGL40/C, CINCH connector, cable 10 meters
Temperature range: -30 to 80°C
code
SN188C
Temperature probe Pt1000TR160/C, CINCH connector, cable 1 meter
Temperature range: -30 to 80°C
code
SN199C
Temperature probe Pt1000TR160/C, CINCH connector, cable 2 meters
Temperature range: -30 to 80°C
code
SN200C
Temperature probe Pt1000TR160/C, CINCH connector, cable 5 meters
Temperature range: -30 to 80°C
code
SN201C
Temperature probe Pt1000TR160/C, CINCH connector, cable 10 meters
Temperature range: -30 to 80°C
code
SN202C
Temperature probe Pt1000TR160/C, CINCH connector, cable 15 meters
Temperature range: -30 to 80°C
code
SN203C
Temperature probe Pt1000TR160/C, CINCH connector, cable 20 meters
Temperature range: -30 to 80°C
code
SN204C

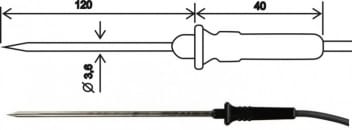

Stick-in probe 2091-250/C, CINCH connector, cable 1 meter
Temperature range: -50 to 250°C
code
SN210C
Stick-in probe 2091-250/C, CINCH connector, cable 2 meters
Temperature range: -50 to 250°C
code
SN211C
Stick-in probe 2091-250/C, CINCH connector, cable 5 meters
Temperature range: -50 to 250°C
code
SN212C
Stick-in probe 2091-250/C, CINCH connector, cable 10 meters
Temperature range: -50 to 250°C
code
SN213C
Temperature probe Pt1000TR125/C, CINCH connector, cable 1 meter
Temperature range: -190 to 150°C
code
SN239C
Temperature probe Pt1000TR125/C, CINCH connector, cable 2 meters
Temperature range: -190 to 150°C
code
SN240C
Temperature probe Pt1000TR125/C, CINCH connector, cable 5 meters
Temperature range: -190 to 150°C
code
SN241C
Temperature probe Pt1000TR125/C, CINCH connector, cable 10 meters
Temperature range: -190 to 150°C
code
SN242C
Temperature probe Pt1000TR050S/C, CINCH connector, cable 1 meter
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/C, CINCH connector
Temperature range: -50 to 200°C
code
SN252C
Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter
Temperature range: -50 to 400°C
code
SN270C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters
Temperature range: -50 to 400°C
code
SN271C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters
Temperature range: -50 to 400°C
code
SN272C
ac/dc adapter 230Vac to 12Vdc/1A, EU
code
A1515eu
ac/dc adapter 230Vac to 12Vdc/1A, UK
code
A1515uk
ac/dc adapter 230Vac to 12Vdc/1A, US
code
A1515us
NiMH rechargeable batt. 9V/200mAh
code
A3400
Accredited temperature calibration
code
SLU001
Transducer USB/RS232 complete
code
MP006
Mini USB cable, 2 meters
code
MP038

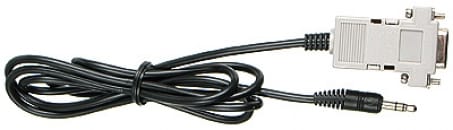

Communication cable for COMMETER Dxxxx
code
QLOG015
Mini USB cable, 2 meters
code
MP038
COMET Magnetic Foldable Stand
code
PPO001
