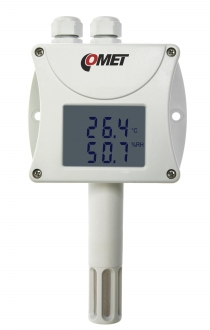

RH+T+Tdp outdoor, indoor probe, RS485 interface
Ambient temperature, relative humidity transmitter. Outdoor, indoor use.
Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
-
codeT3411
-
Warranty3 years
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
RS485
Range of humidity sensor temperature compensation
all temperature range
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU, ARION, Advantech ADAM
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions
88,5 x 170 x 39,5 mm; stem length 75 mm
Weight
approx. 150 g
Warranty
3 years
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Accredited temperature and relative humidity calibration
code
SLU003
sintered bronze sensor protection
code
F0000
plastic sensor protection with stainless filter (gray)
code
F5200
PTFE sensor protection, white
code
F5300
COMETEO Professional Thermometer Screen for Weather Station Sensor
code
F8000
Humidity Standard 10%RH, set 5pcs
code
HM023
Humidity Standard 80%RH, set 5pcs
code
HM024
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Vessel for adjustment and calibration of humidity
code
MD046
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Transmitter version with watertight male connector
code
TxxxxL
COMET presentation case for samples
code
BM512
COMET Magnetic Foldable Stand
code
PPO001
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
3D model T3411
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Transmitters
