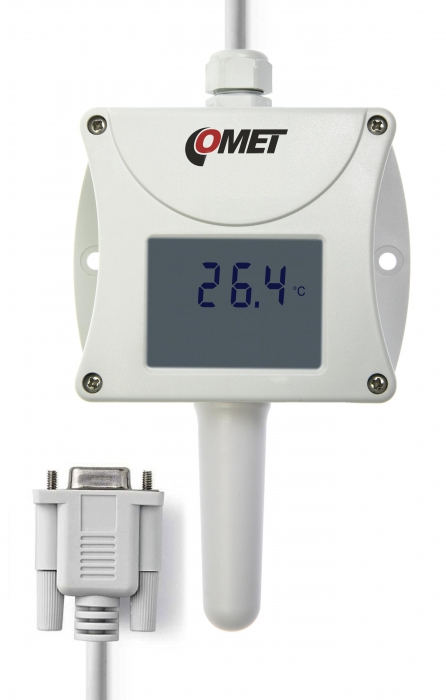

Temperature transmitter with RS232 output
Ambient temperature transmitter. Outdoor, indoor use.
Temperature transmitter is built in a durable watertight case. Degrees Celsius and Fahrenheit are user selectable. Large dual line LCD is an advantage. Display is possible to switch off. Computerized design ensures maximum long term stability and fail indication.
-
codeT0310
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature sensor
Output
RS232
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU and Advantech ADAM compatible protocol
Power
9-30 Vdc
Protection class
IP65
Dimensions
88,5 x 148 x 39,5 mm; stem length 53 mm
Weight
approx. 140 g
Warranty
3 years
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Accredited temperature calibration
code
SLU001
Transducer USB/RS232 complete
code
MP006
COMETEO Professional Thermometer Screen for Weather Station Sensor
code
F8000
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Transmitter version with watertight male connector
code
TxxxxL
COMET presentation case for samples
code
BM512
COMET Magnetic Foldable Stand
code
PPO001
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
3D model T0310
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Transmitters
