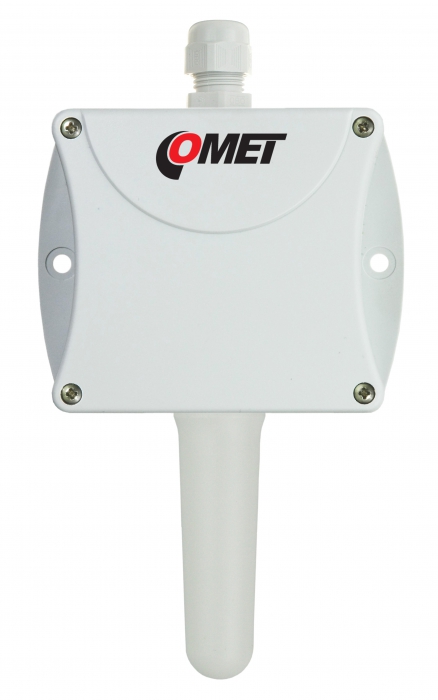

Temperature transmitter with 0-10V output, adjustable
Low cost ambient temperature transmitter with 0-10V output is built in a durable watertight case for outdoor and indoor use. Built-in precise temperature sensor. Output temperature range is user adjustable.
NEW - AC Power - now also powered from 24 Vac !
-
codeP0210
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature sensor
Output
0 - 10 V
Available temperature units
degrees Celsius, degrees Fahrenheit
Configuration of output
user adjustable from PC; measured range + value
Power
15-30 Vdc; 24 Vac
Protection class
IP65
Dimensions
88,5 x 148 x 39,5 mm; stem length 53 mm
Weight
approx. 140 g
Warranty
3 years
Optional accessories and download
Accredited temperature calibration
code
SLU001
COMETEO Professional Thermometer Screen for Weather Station Sensor
code
F8000
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Transmitter version with watertight male connector
code
TxxxxL
COMET presentation case for samples
code
BM512
COMET Magnetic Foldable Stand
code
PPO001
Software
Conversions - application for recalculation of values
Others
3D model P0210
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Declaration of Conformity
Catalogs
CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
Catalogue Sheets - COMET Economy Sensors
