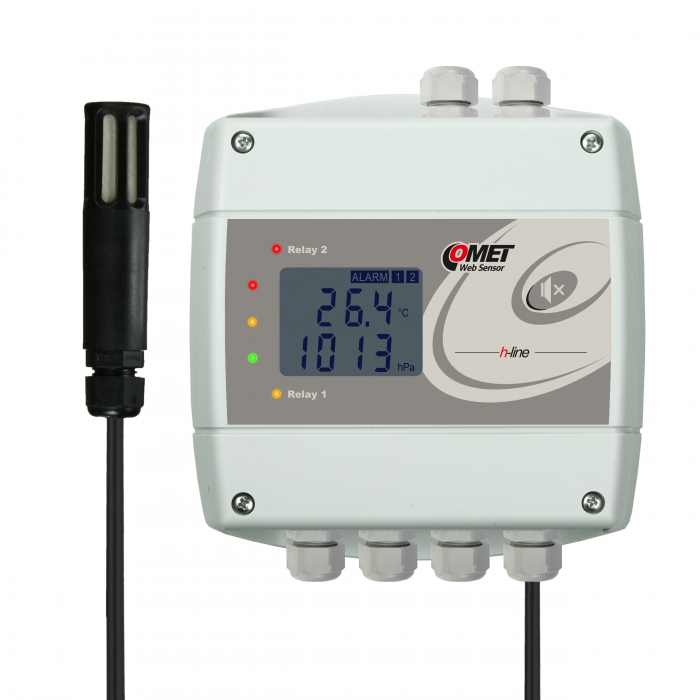

Thermometer hygrometer barometer with Ethernet interface and relays, cable 2 meters

Ambient temperature, relative humidity, atmospheric pressure with two relay outputs.

Sensor H7531 is designed for online monitoring of temperature, relative humidity of air without aggressive substances. Three binary inputs to detection of two-states signals are the advantage. Other devices are controlled by two relay outputs.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

The device is supplied with T+RH probe with 2 meters cable.

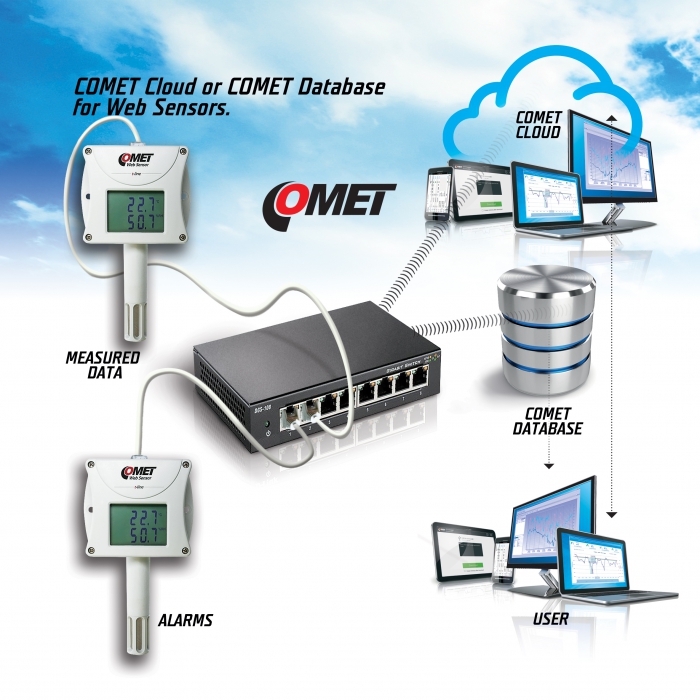

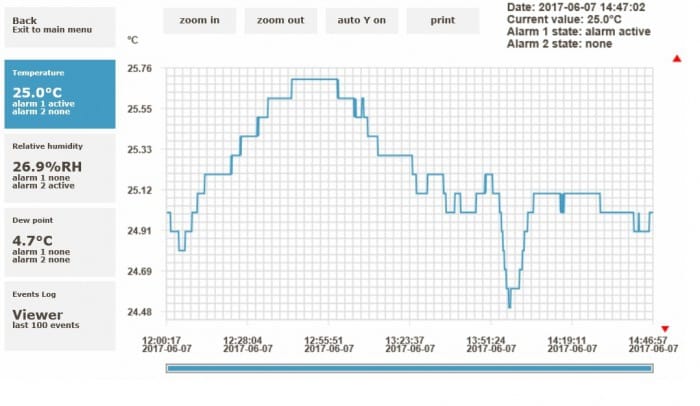

Processing and analysis of measured data:





  • code
    H7531-2
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Atmospheric pressure
Two-state signal

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa
Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution 0.1 hPa

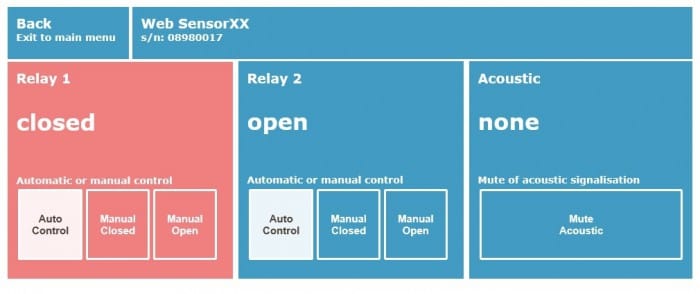

RELAY OUTPUTS

Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

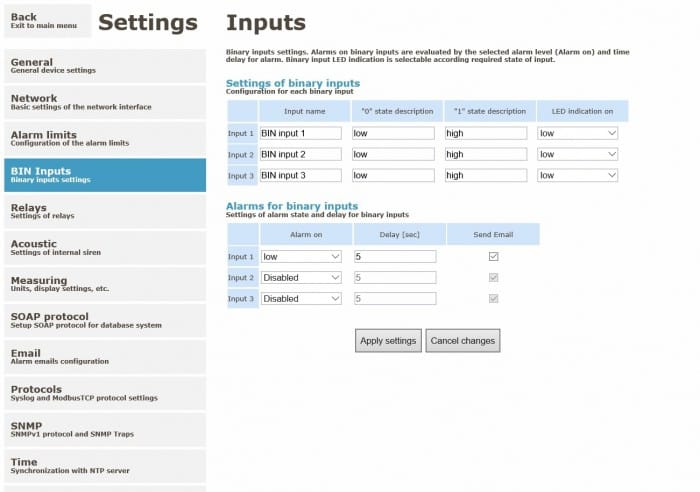

BINARY INPUTS

Quantity 3
Signal for binary inputy dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.
Minimum pulse duration on binary input 500 ms
Voltage across open contact < 3,3 V
Low voltage level 0 to +0,5 V
High voltage level +3,0 to +30 V

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels internal atmospheric pressure sensor, 1x connectable temperature+humidity probe
Acoustic alarm from built-in beeper - switchable
Counted values humidex, dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output Ethernet
Measuring interval 2 s
Range of humidity sensor temperature compensation all temperature range
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail (SMTP authentication is supported), SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP40
Dimensions 136 x 213 x 45 mm; stem length 75 mm
External probe cable length 2 meters
Weight approx. 360 g
Warranty 3 years
