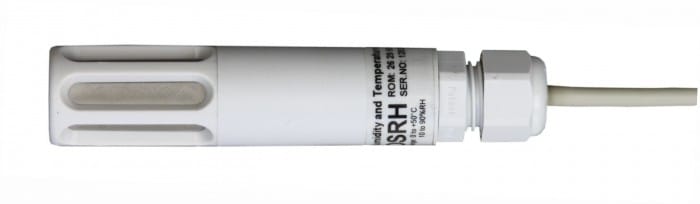

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters
Digital humidity-temperature probe for P8xxx Web Sensor with range 0 to 50°C. With CINCH connector.
-
codeDSRH02
Product variants
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
0 to +50 °C
Accuracy
± 2 °C
RELATIVE HUMIDITY SENSOR
Measuring range
10 to 90 %RV
Accuracy
3.5 %RV in range 10 to 90 %RV at 25 °C
GENERAL TECHNICAL DATA
Filtrační schopnost krytky senzoru
0.025mm - filter with stainless steel mesh
Dimensions of the case
length 88mm;
diameter 18 mm
diameter 18 mm
Length of lead-in cable
2 meters
Connector
CINCH
IP protection
IP40
Warranty
3 years
Optional accessories and download
Manuals
Instruction Manual / Návod k použití
Declaration of Conformity
