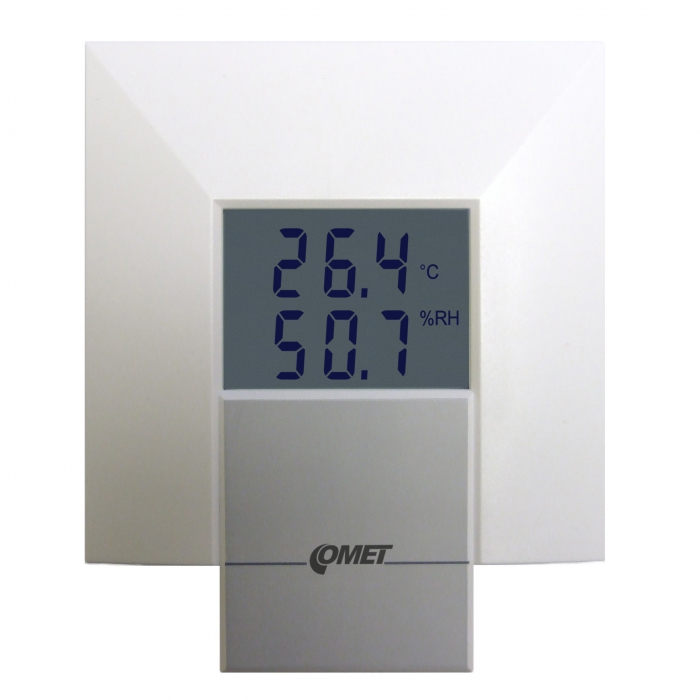

Interior temperature, humidity transmitter with RS232 output

Discontinued Replacement

Ambient humidity, temperature transmitter. Indoor use.

For exacting interiors in building energy management and HVAC systems. Are designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.

code

T3318
Warranty

3 years

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -10 to +50 °C

Accuracy ±0.5 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 5 to 95 % RH

Accuracy ± 2,5 % RH in the range 5 to 60 % RH

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.6°C at ambient temperature T<25°C and RH>30%

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -10 to +50 °C

Channels internal temperature and humidity sensor

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output RS232

Range of humidity sensor temperature compensation all temperature range

Available temperature units degrees Celsius, degrees Fahrenheit

Communication protocol ModBus RTU and Advantech ADAM compatible protocol

Power 9 to 30 Vdc

Protection class IP20

Dimensions 88 x 106 x 33 mm

Weight approx. 150 g

Warranty 3 years
