RH+T+Tdp cable probe, output 4-20mA
Humidity, temperature transmitter. Outdoor, indoor use.
Relative humidity, temperature sensors at probe on the cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
The device is supplied with T+RH probe with 1 meter cable.
-
codeT3111
-
Warranty3 years
Product variants
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +105 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x connectable temperature+humidity probe
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation
all temperature range
Configuration of output
user adjustable from PC; measured range + value
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions
88,5 x 145 x 39,5 mm; length/diameter of external probe 88/18 mm
External probe cable length
1 meter
Weight
approx. 210 g
Warranty
3 years
Optional accessories and download
Accredited temperature and relative humidity calibration
code
SLU003
cable for transmitter adjustment via USB port
code
SP003
Wall holder for external probes DIGIL
code
SP009
sintered bronze sensor protection
code
F0000
plastic sensor protection with stainless filter (black)
code
F5200B
PTFE sensor protection, white
code
F5300

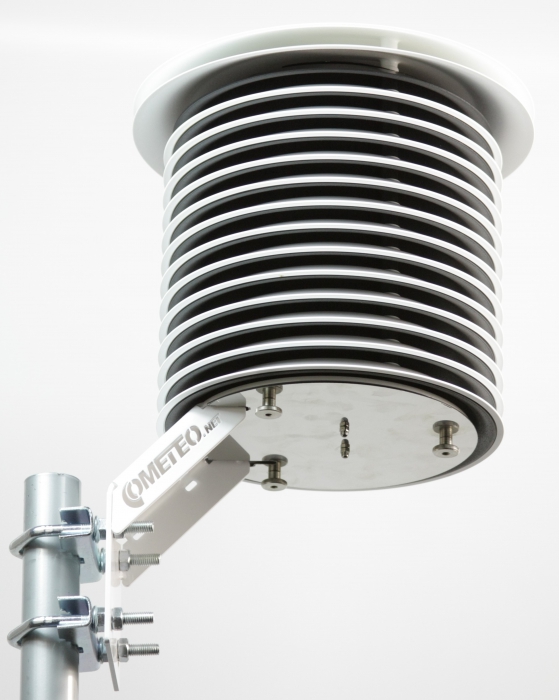

COMETEO Professional Thermometer Screen for Weather Station Sensor
code
F8000
Humidity Standard 10%RH, set 5pcs
code
HM023
Humidity Standard 80%RH, set 5pcs
code
HM024
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Vessel for adjustment and calibration of humidity
code
MD046
PP4 Flat circular flange
code
PP4
PP90 Right-angled stainless steel flange
code
PP90
plastic gland for direct mounting of the humidity probe
code
SP004
Tool for easy connection to WAGO terminals 236 for analog output transmitters
code
SP005
Transmitter version with watertight male connector
code
TxxxxL
COMET presentation case for samples
code
BM512
COMET Magnetic Foldable Stand
code
PPO001
Software
Conversions - application for recalculation of values
Others
3D model T3111
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
Catalogue Sheets - COMET Transmitters
