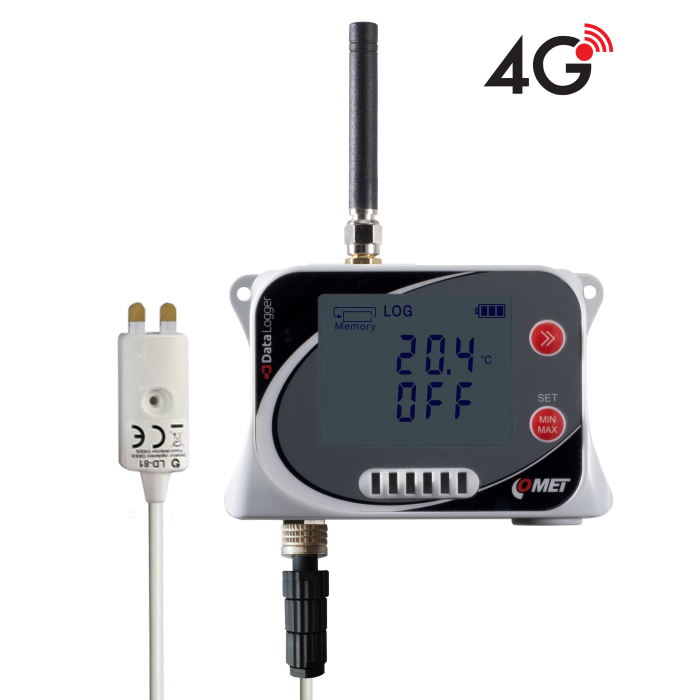

IoT Wireless Temperature and Relative Humidity Datalogger with flood detector, with built-in 4G modem

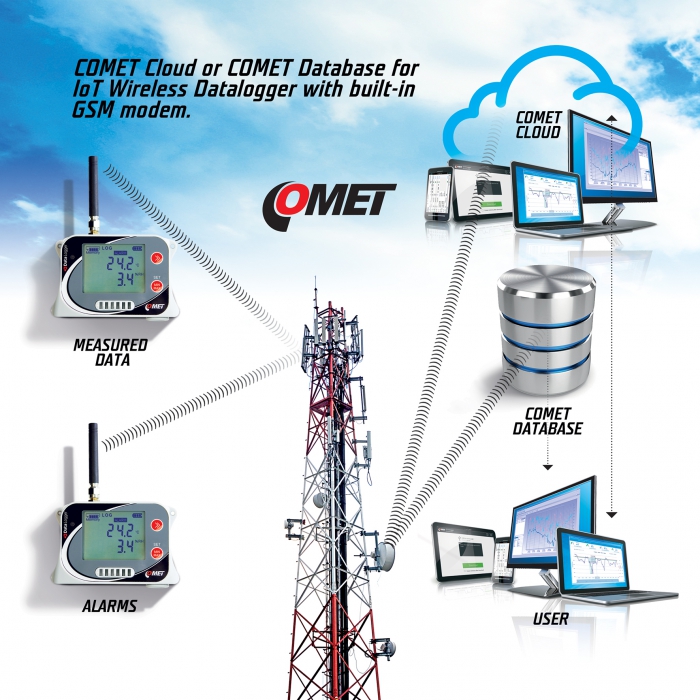

The U3832G datalogger is used to measure temperature, relative humidity and dew point temperature using internal sensors, plus an attached LD-81 flood detector to indicate water flooding. In case of exceeded set limits, SMS and JSON messages can be sent via 4G data connection. Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system.

It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable. Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

  • code
    U3832G
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -20 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ± 1.8 % RH
Resolution 0.1% RH

DEW POINT

Measuring range -90 to +60 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

FLOOD DETECTOR

Usage Intended for indoor usage only
Cable length 2.5 meters (can`t be extended)
Connection via ELKA connector, powered directly from U3832G

GSM MODEM PARAMETERS

LTE Cat 1 LTE FDD/GSM/GPRS/EDGE
Supported network types GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal temperature and humidity sensor, flood detector LD-81
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud from 5 minutes
Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class IP67 electronics; IP30 sensors
Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries) approx. 260 g
Warranty 3 years
