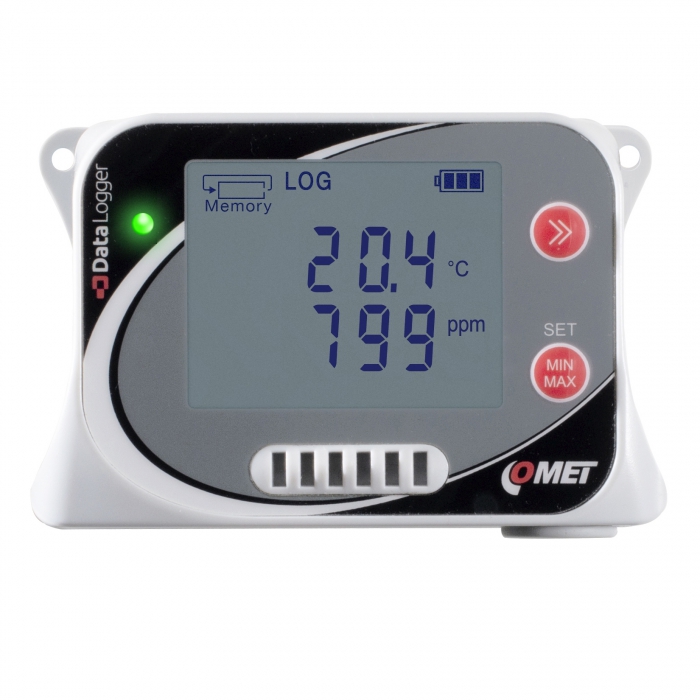

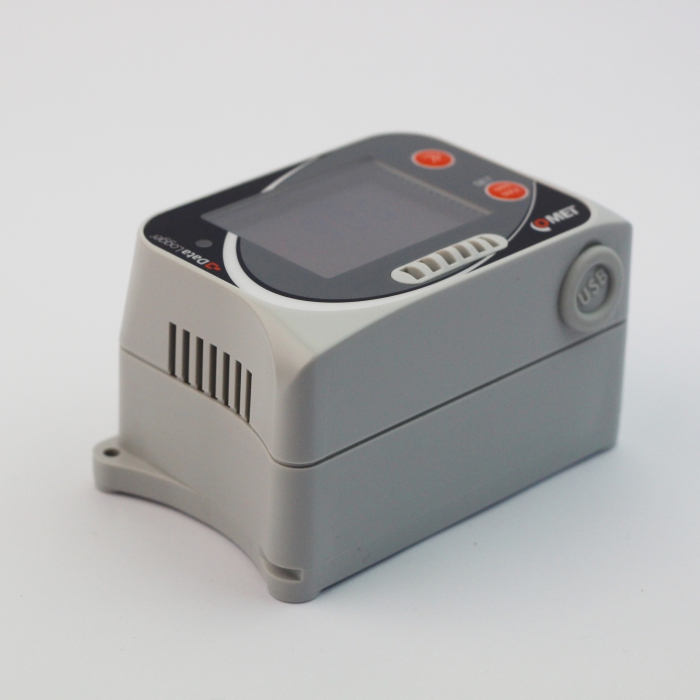

Temperature, humidity and CO2 data logger with built-in sensors

Temperature, humidity and CO2 data logger with built-in sensors
Temperature, humidity and CO2 data logger with built-in sensors
Temperature, humidity and CO2 data logger with built-in sensors
Temperature, humidity and CO2 data logger with built-in sensors
Temperature, humidity and CO2 data logger with built-in sensors
Temperature, humidity and CO2 data logger with built-in sensors

Datalogger is designed to record temperature, humidity and CO2. In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.



  • code
    U3430
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
CO2

TEMPERATURE SENSOR

Measuring range -20 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ± 1.8 % RH
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +60 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

CO2 SENSOR

Measuring range 0 to 5000 ppm
Accuracy ±(50ppm +3% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal sensors for temperature, humidity, CO2
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 1 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power Li-Ion battery A8200, 3.6V/5200mAh
Protection class IP20
Dimensions 61 x 93 x 53 mm
Weight (including batteries) approx. 250 g
Warranty 3 years

Optional accessories and download

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk
AC/DC adapter 230Vac to 5Vdc/2.1 A, US

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us
Accupack A8205 for dataloggers "U"

Accupack A8205 for dataloggers "U"

code A8205

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053

Wall holder for datalogger

Wall holder for datalogger

code LP100
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

code LP103

COMET Database

COMET Database

code CDB
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV

Adapter for CO2 adjustment and calibration of dataloggers COMET

Adapter for CO2 adjustment and calibration of dataloggers COMET

code LP104

COMET presentation case for samples

COMET presentation case for samples

code BM512
COMET Magnetic Foldable Stand

COMET Magnetic Foldable Stand

code PPO001

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.34 MB
download-icon Quick Start Manual
1.15 MB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Declaration of Conformity
95.35 KB

Catalogs

download-icon CATALOG - Dataloggers
3.57 MB
download-icon CATALOG - CO2
5.30 MB
download-icon Catalogue Sheets - COMET Data Loggers
2.36 MB
