WebSensor with PoE - remote CO2 concentration with Ethernet interface
CO2 - carbon dioxide t-line Web sensor with Power over Ethernet feature. Remote alarm.

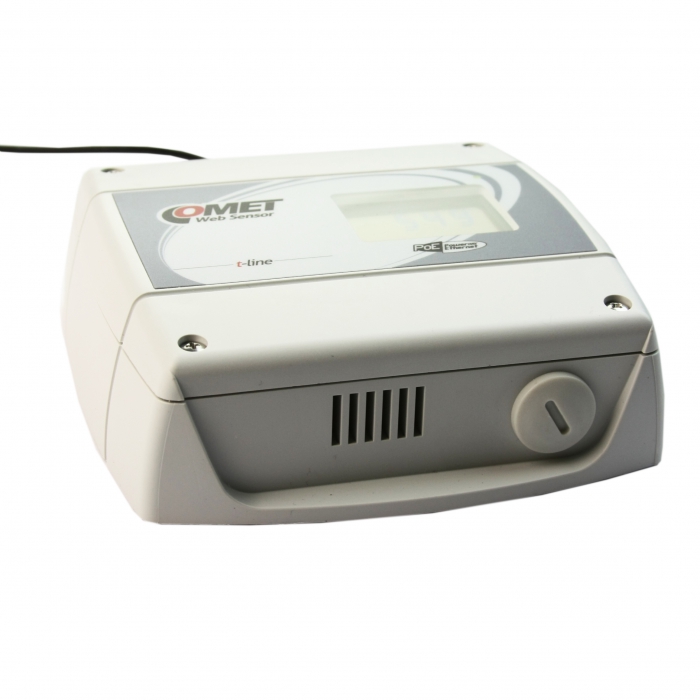

Web Sensor with built-in concentration CO2 sensor with PoE function.
A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

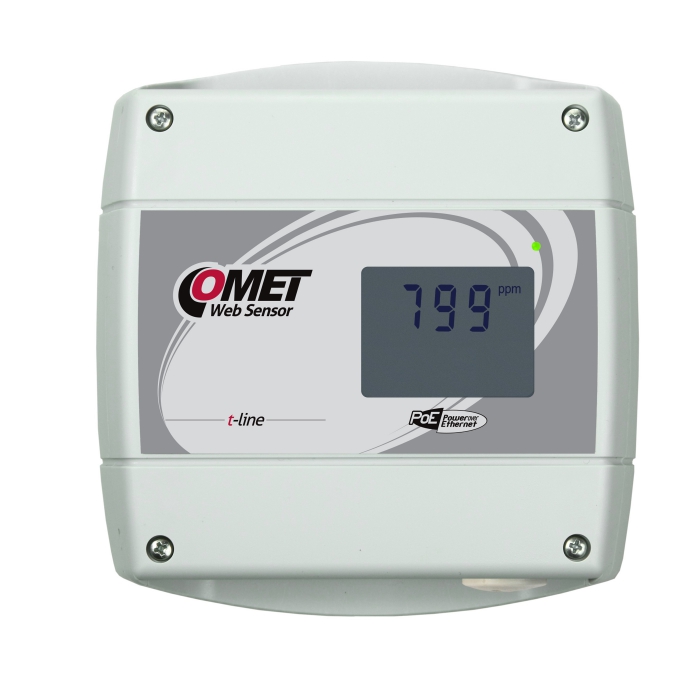

The CO2 concentration is shown on the display or signaled by a color LED.

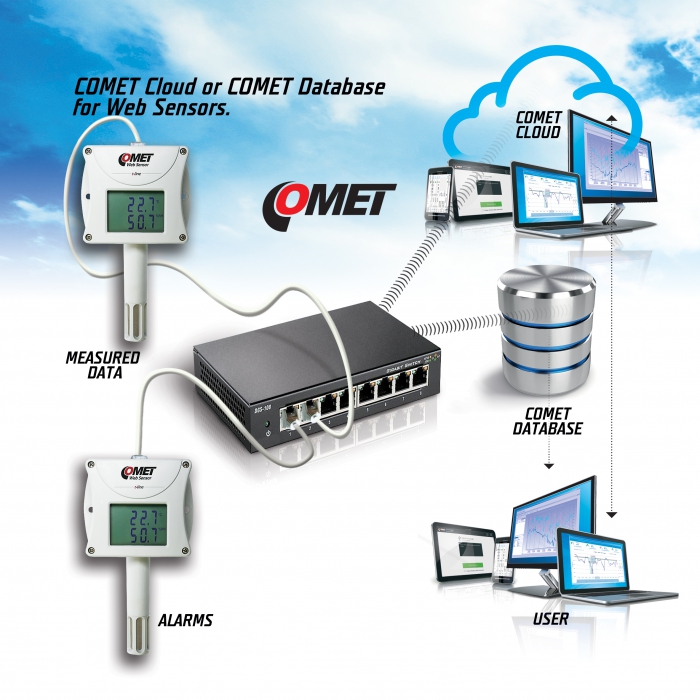

Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeT5640
-
Warranty3 years
Technical data
Measured value
Optional accessories and download
AC/DC adapter 230Vac to 5Vdc/2.1A, EU
AC/DC adapter 230Vac to 5Vdc/2.1A, UK
AC/DC adapter 230Vac to 5Vdc/2.1A, US
Accredited CO2 calibration
Surcharge for internal CO2 sensor range adjustment
KIT-GSM with modem
Holder for mounting the COMET Transmitter on magnetic surfaces
COMET Database
COMET Cloud
COMET Cloud Lite for Android & iOS
Database Viewer for Comet Database
COMET presentation case for samples
COMET Magnetic Foldable Stand
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
How to add WebSensor to COMET Cloud
MIB
Software development kit (SDK)
Catalogs
CATALOG - CO2
CATALOG - WebSensor with Ethernet output
Catalogue Sheets - COMET Premium WebSensors
