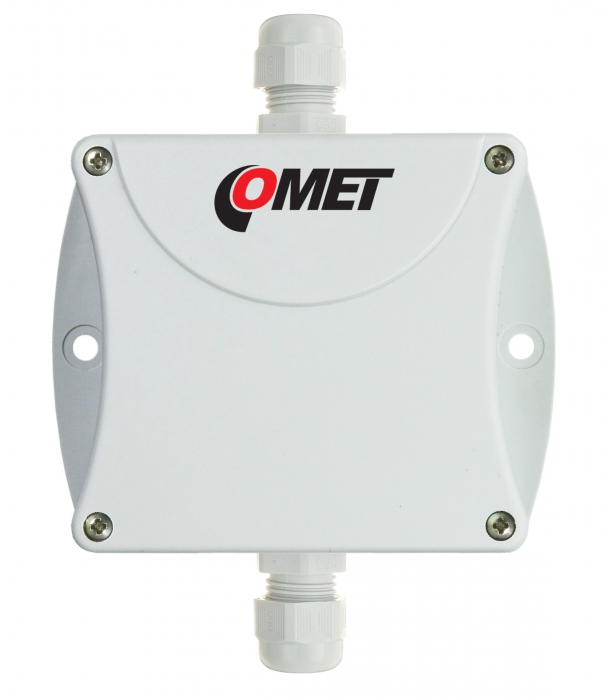

Temperature Transducer Pt100 -50°C to +50°C/ 4 to 20 mA
Temperature transducer for Pt100 sensors. Outdoor, indoor use.
For external Pt100 temperature probe.
-
codeP6191
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR - externí čidlo Pt100
Measuring range
-50 to +50 °C
Accuracy
±0.3°C up to +100°C, ±0.4°C over +100°C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x external temperature probe
Output
4-20 mA
Power
9-30 Vdc, typically 24 V
Protection class
IP65
Dimensions
88,5 x 117 x 39,5 mm
Weight
approx. 125 g
Warranty
3 years
Optional accessories and download
Temperature probe Pt1000TG8/0, without connector
Temperature range: -80 to 200°C
code
SN104
Temperature probe Pt1000TG8/0, without connector, cable 2 meters
Temperature range: -80 to 200°C
code
SN105
Temperature probe Pt1000TG8/0, without connector, cable 5 meters
Temperature range: -80 to 200°C
code
SN108
Temperature probe Pt1000TG8/0, without connector, cable 10 meters
Temperature range: -80 to 200°C
code
SN113
Temperature probe 2061-250/0, without connector
Temperature range: -30 to 250°C
code
SN147
Temperature probe 2061-250/0, without connector, cable 2 meters
Temperature range: -30 to 250°C
code
SN148
Temperature probe 2061-250/0, without connector, cable 5 meters
Temperature range: -30 to 250°C
code
SN151
Temperature probe 2061-250/0, without connector, cable 10 meters
Temperature range: -30 to 250°C
code
SN156
Temperature probe Pt1000TG7/0, without connector
Temperature range: -50 to 200°C
code
SN164
Temperature probe Pt1000TG7/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN165
Temperature probe Pt1000TG7/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN166
Temperature probe Pt1000TG7/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN167
Temperature probe 2304-220/0, without connector, cable 1 meter
Temperature range: -30 to 220°C
code
SN168
Temperature probe 2021-150/0, without connector, cable 1 meter
Temperature range: -30 to 150°C
code
SN169
Temperature probe PTS350A-2/0, without connector, cable 2 meters
Temperature range: -30 to 130°C
code
SN170
Temperature probe 2034-220/0, without connector, cable 1 meter
Temperature range: -30 to 150°C
code
SN175
Temperature probe 2061-200/0, without connector, cable 1 meter
Temperature range: -50 to 200°C
code
SN178
Temperature probe 2061-200/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN179
Temperature probe 2061-200/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN180
Temperature probe 2061-200/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN181
Temperature probe PTS350A-5/0, without connector, cable 5 meters
Temperature range: -30 to 130°C
code
SN182
Temperature probe PTS350A-10/0, without connector, cable 10 meters
Temperature range: -30 to 130°C
code
SN183
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter
Temperature range: -30 to 80°C
code
SN185
Temperature probe Pt1000TGL40/0, without connector, cable 2 meters
Temperature range: -30 to 80°C
code
SN186
Temperature probe Pt1000TGL40/0, without connector, cable 5 meters
Temperature range: -30 to 80°C
code
SN187
Temperature probe Pt1000TGL40/0, without connector, cable 10 meters
Temperature range: -30 to 80°C
code
SN188
Temperature probe Pt1000TR160/0, without connector, cable 1 meter
Temperature range: -30 to 80°C
code
SN199
Temperature probe Pt1000TR160/0, without connector, cable 2 meters
Temperature range: -30 to 80°C
code
SN200
Temperature probe Pt1000TR160/0, without connector, cable 5 meters
Temperature range: -30 to 80°C
code
SN201
Temperature probe Pt1000TR160/0, without connector, cable 10 meters
Temperature range: -30 to 80°C
code
SN202
Temperature probe Pt1000TR160/0, without connector, cable 15 meters
Temperature range: -30 to 80°C
code
SN203
Temperature probe Pt1000TR160/0, without connector, cable 20 meters
Temperature range: -30 to 80°C
code
SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector
Temperature range: -30 to 100°C
code
SN205
Stick-in probe 2091-250/0, without connector, cable 1 meter
Temperature range: -50 to 250°C
code
SN210
Stick-in probe 2091-250/0, without connector, cable 2 meters
Temperature range: -50 to 250°C
code
SN211
Stick-in probe 2091-250/0, without connector, cable 5 meters
Temperature range: -50 to 250°C
code
SN212
Stick-in probe 2091-250/0, without connector, cable 10 meters
Temperature range: -50 to 250°C
code
SN213
Special probe 2071-80/0, without connector
Temperature range: -30 to 80°C
code
SN214
Temperature probe Pt1000TG68/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN232
Temperature probe Pt1000TG68/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN233
Temperature probe Pt1000TG68/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN234
Temperature probe Pt1000TR125/0, without connector, cable 1 meter
Temperature range: -190 to 150°C
code
SN239
Temperature probe Pt1000TR125/0, without connector, cable 2 meters
Temperature range: -190 to 150°C
code
SN240
Temperature probe Pt1000TR125/0, without connector, cable 5 meters
Temperature range: -190 to 150°C
code
SN241
Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters
Temperature range: -190 to 150°C
code
SN242
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/0, without connector, cable 2 meters
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/0, without connector, cable 5 meters
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector
Temperature range: -50 to 200°C
code
SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN256
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C
Temperature range: -30 to 80°C
code
SN258
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267
Temperature probe Pt1000TR050M/0, without connector, cable 1 meter
Temperature range: -50 to 400°C
code
SN270
Temperature probe Pt1000TR050M/0, without connector, cable 5 meters
Temperature range: -50 to 400°C
code
SN272
Temperature probe Pt1000TR050M/0, without connector, cable 10 meters
Temperature range: -50 to 400°C
code
SN273
Accredited temperature calibration
code
SLU001
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Transmitter version with watertight male connector
code
TxxxxL
COMET presentation case for samples
code
BM512
COMET Magnetic Foldable Stand
code
PPO001
Software
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
Catalogue Sheets - COMET Economy Sensors
