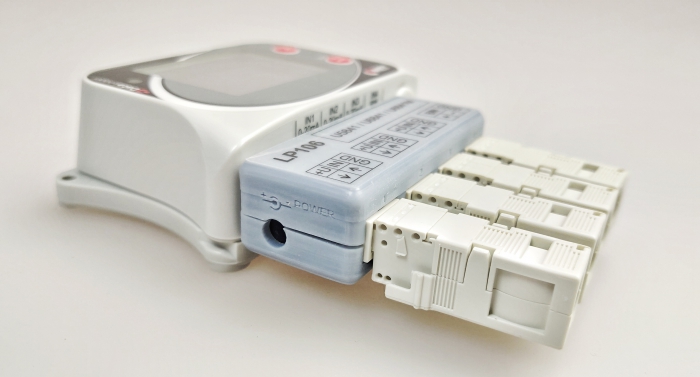

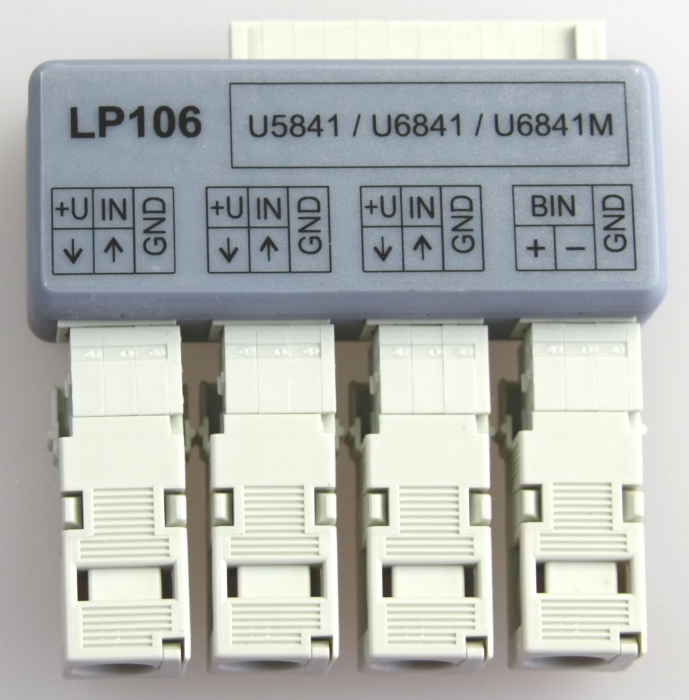

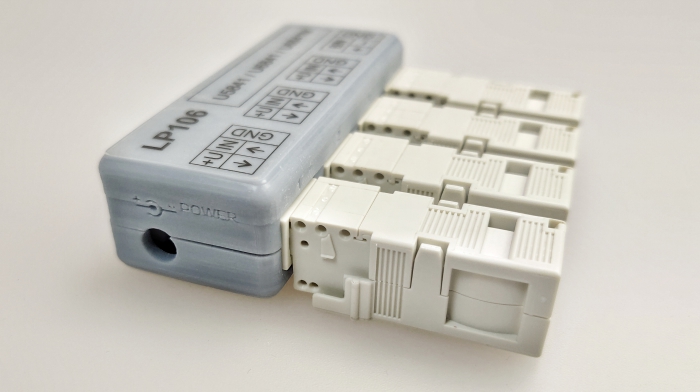

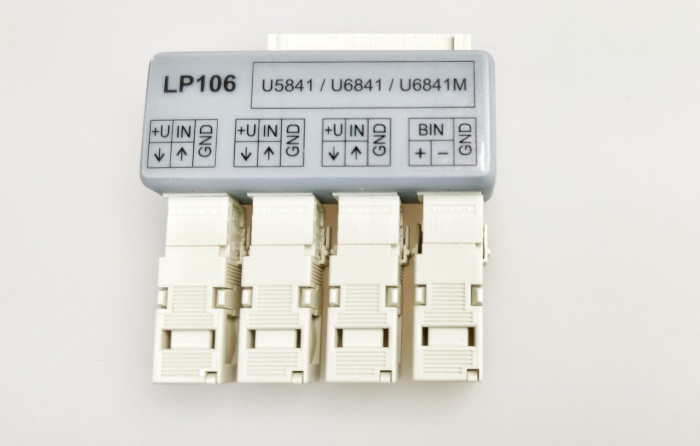

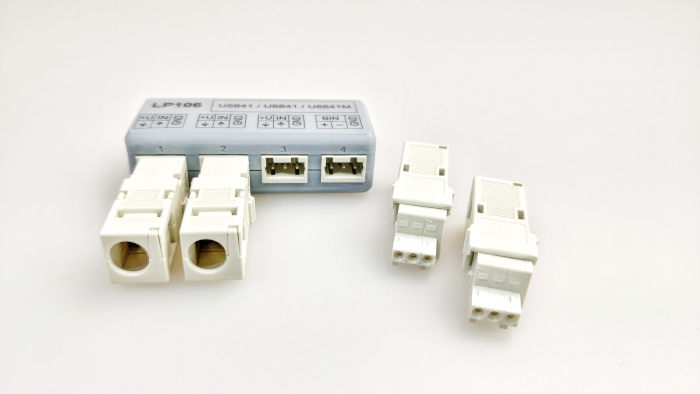

Connection adapter for Ux841 dataloggers

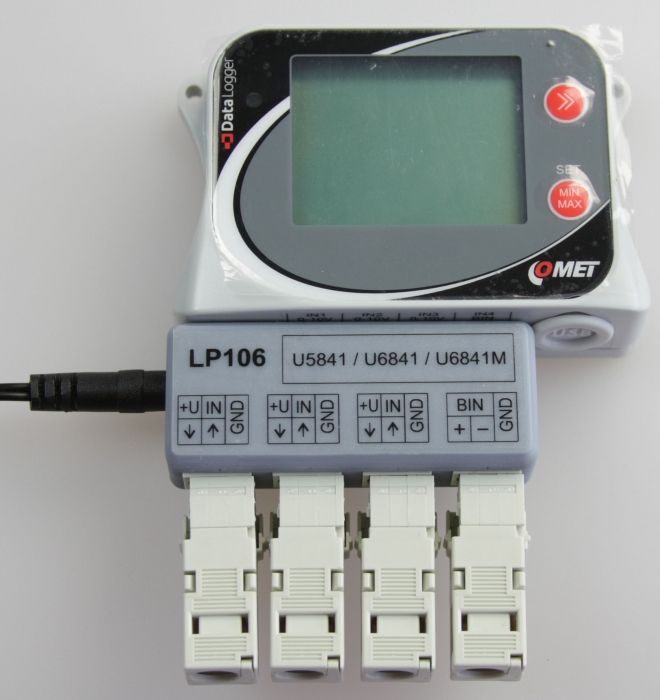

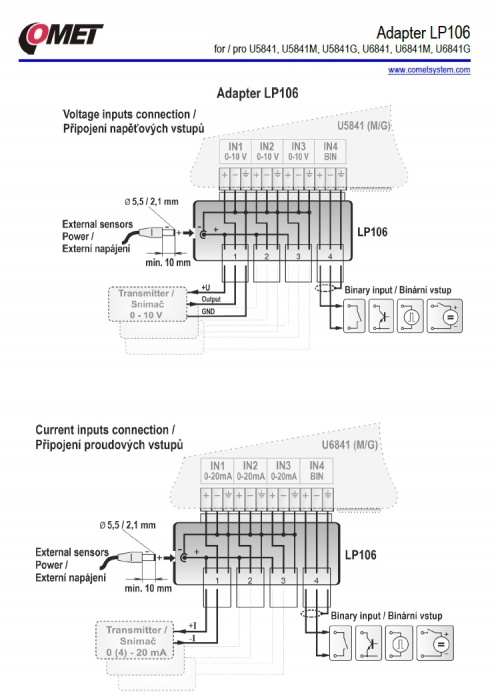

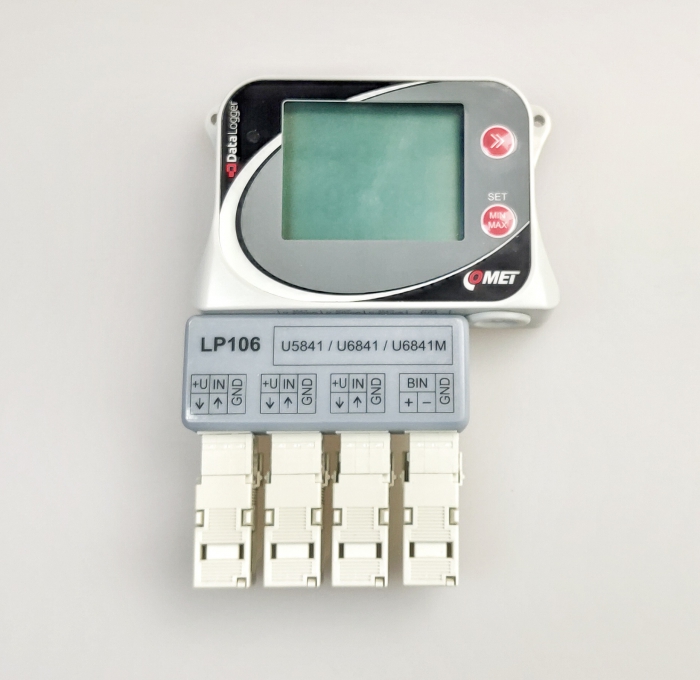

Adapter with terminals for easy connection of input signals, protection IP20. Designed for dataloggers U5841 (M/G), U6841 (M/G). Adapter enables to supply connected transducers e.g. from ac/dc adapter connected via power connector.
-
codeLP106
Optional accessories and download
ac/dc adapter 230Vac to 12Vdc/1A, EU
code
A1515eu
ac/dc adapter 230Vac to 12Vdc/1A, UK
code
A1515uk
ac/dc adapter 230Vac to 12Vdc/1A, US
code
A1515us
Manuals
Instruction Manual / Návod k použití
