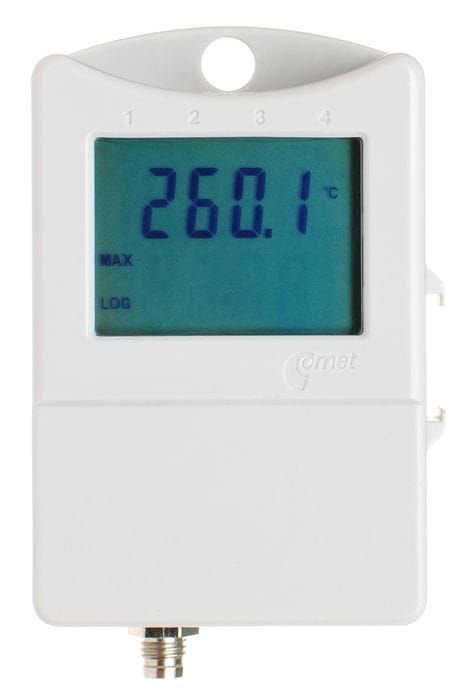

Thermometer for external probe with display

Thermometer is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

  • code
    S0111
  • Warranty
    3 years

Technical data

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C (-50 to +100 °C);
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C
Channels 1x external temperature probe
Memory 32,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power lithium battery 3.6 V; size AA
Battery life 6 years
Protection class IP67
Dimensions (without connectors) 93 x 64 x 29 mm
Weight (including batteries) approx. 115 g
Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/E, ELKA connector

Temperature probe Pt1000TG8/E, ELKA connector

Temperature range: -80 to 200°C
code SN104E
Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105E
Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108E
Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG8/E, ELKA connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113E
Temperature probe Pt1000TG7/E, ELKA connector

Temperature probe Pt1000TG7/E, ELKA connector

Temperature range: -50 to 200°C
code SN164E
Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165E
Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166E
Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG7/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167E
Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature probe 2304-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168E
Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature probe 2021-150/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169E
Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature probe PTS350A-2/E, ELKA connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170E
Ambient temperature probe, 200-80/E

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C
code SN171
Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature probe 2034-220/E, ELKA connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175E
Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature probe 2061-200/E, ELKA connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178E
Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature probe 2061-200/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN179E
Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature probe 2061-200/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN180E
Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature probe 2061-200/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN181E
Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature probe PTS350A-5/E, ELKA connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182E
Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature probe PTS350A-10/E, ELKA connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TGL40/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187E
Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TGL40/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188E
Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR160/E, ELKA connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199E
Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200E
Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201E
Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202E
Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203E
Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature probe Pt1000TR160/E, ELKA connector, cable 20 meters

Temperature range: -30 to 80°C
code SN204E
Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Stick-in probe 2091-250/E, ELKA connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210E
Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Stick-in probe 2091-250/E, ELKA connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211E
Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Stick-in probe 2091-250/E, ELKA connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212E
Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Stick-in probe 2091-250/E, ELKA connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213E
Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 2 meters

Temperature range: -50 to 200°C
code SN232E
Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 5 meters

Temperature range: -50 to 200°C
code SN233E
Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TG68/E, ELKA connector, cable 10 meters

Temperature range: -50 to 200°C
code SN234E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241E
Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Cryogenic temperature probe Pt1000TR125/E, ELKA connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR050S/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Temperature range: -50 to 200°C
code SN252E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273E

Lithium battery 3,6V/AA

Lithium battery 3,6V/AA

code A4203

Accredited temperature calibration

Accredited temperature calibration

code SLU001

KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers

KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers

code KIT-GSM-L
USB adapter

USB adapter

code LP003
Start/stop magnet

Start/stop magnet

code LP004
COM adapter with protection IP65

COM adapter with protection IP65

code LP012
GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families

GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families

code LP040
Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006
Antenna for GSM modem

Antenna for GSM modem

code MP009/1
Wall holder for GPRS modem

Wall holder for GPRS modem

code MP036
DIN Rail 35mm holder for GPRS modem

DIN Rail 35mm holder for GPRS modem

code MP037
Communication cable for GSM modem

Communication cable for GSM modem

code QMS2901
One time fee for using M2M server - applied for each data logger with modem

One time fee for using M2M server - applied for each data logger with modem

code SLU302

wall holder for datalogger

wall holder for datalogger

code F9000
Self Adhesive Dual Lock

Self Adhesive Dual Lock

code MD036

COMET Database

COMET Database

code CDB
Software for COMET TPrints and GSM modems

Software for COMET TPrints and GSM modems

code SWR001

Female ELKA3008V connector

Female ELKA3008V connector

code K1321

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Android downloder from S/R dataloggers
1.85 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
424.65 KB
download-icon Quick Start Manual
995.74 KB
download-icon Declaration of Conformity
60.37 KB

Catalogs

download-icon CATALOG - Dataloggers
3.57 MB

Related products

Temperature data logger for one external Pt1000 probe

Temperature data logger for one external Pt1000 probe

code U0111
Temperature data logger for two external Pt1000 probes

Temperature data logger for two external Pt1000 probes

code U0121
Temperature data logger for four external Pt1000 probes

Temperature data logger for four external Pt1000 probes

code U0141

Reference

Case Study - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

Case Study - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

Type of application: Monitoring during transport SOHO (Small Office and Home Office) Industry Healthcare and Laboratory Building Management - HVAC Server rooms and data centers Agriculture Culture

Temperature and Relative Humidity measuring in PHARMACIES and DRUG STORES

Temperature and Relative Humidity measuring in PHARMACIES and DRUG STORES

Type of application: SOHO (Small Office and Home Office) Industry Healthcare and Laboratory Building Management - HVAC

Temperature monitoring of the construction layers of the sleeper subsoil

Temperature monitoring of the construction layers of the sleeper subsoil

Type of application: Industry Building Management - HVAC Agriculture

COMET Dataloggers used for measuring in shipping containers

COMET Dataloggers used for measuring in shipping containers

Type of application: Monitoring during transport Industry Building Management - HVAC

Transport of blood products and medical equipment

Transport of blood products and medical equipment

Type of application: Monitoring during transport Healthcare and Laboratory

Speleoklub Minotaurus

Speleoklub Minotaurus

Type of application: Building Management - HVAC Agriculture Culture

Balloon measurements of air pollution

Balloon measurements of air pollution

Type of application: Industry Building Management - HVAC

Using og temperature data logger S0110 in speleological practice

Using og temperature data logger S0110 in speleological practice

Type of application: Building Management - HVAC Agriculture Culture

Humidity monitoring in family houses

Humidity monitoring in family houses

Type of application: Building Management - HVAC

Animal Transportation with Temperature Monitoring

Animal Transportation with Temperature Monitoring

Type of application: Monitoring during transport Healthcare and Laboratory Agriculture

Prague Castle

Prague Castle

Type of application: Building Management - HVAC Server rooms and data centers Culture

Masaryk University in Brno

Masaryk University in Brno

Type of application: Industry Building Management - HVAC Weather monitoring
