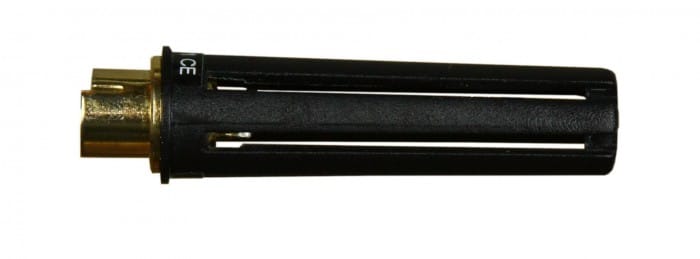

Digital temperature/humidity probe DIGIS/M, MiniDin connector
Digital probe with connector MiniDIN, for direct insertion.
The probe is supplied with a calibration certificate.
The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.
Optionally also available with cable of various lengths. For other cable lengths use the selector.
-
codeDIGIS/M
Product variants
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-10 to +60 °C
Accuracy
±0.4 °C
Response time
t90 < 15 min, temperature step 20 °C, air flow 1 m/s
HUMIDITY SENSOR
Measuring range
0 to 100 % RV
Accuracy
±1.8 %RV in the range of 0 to 90 % RH at 23 °C
Response time
t90 < 9 s (humidity step 60 %RH, constant temperature)
Hysteresis
±1 % RV
Linearity
±1 % RV
DEW POINT
Measuring range
-60 to +60 °C
Accuracy
see the manual
GENERAL TECHNICAL DATA
Operating temperature
-10 to +60 °C
Protection class
IP30
Connector
MiniDin
Dimensions
63 x 16 mm
Weight
cca 10 g
Warranty
3 years
Optional accessories and download
Manuals
Instruction Manual
Declaration of Conformity
Confirmation of the functioning principles of digital probes made by COMET
