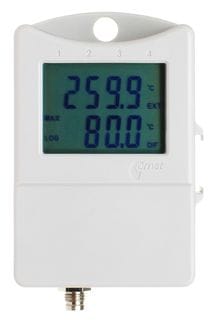

Thermometer 2 chann. (1 external probe) with display

Thermometer is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

code

S0122
Warranty

3 years

Add to quote

Technical data

TEMPERATURE SENSOR

Measuring range -30 to +70 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C

Accuracy ±0.2 °C (-50 to +100 °C);
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C

Channels 1x internal temperature sensor, 1x external temperature probe

Memory 32,000 values (non-cyclic record)

Recording interval adjustable from 10 s to 24 h

Display and alarm refresh each 10 s

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power lithium battery 3.6 V; size AA

Battery life 6 years

Protection class IP67 electronics; IP30 sensors

Dimensions (without connectors) 93 x 64 x 29 mm

Weight (including batteries) approx. 115 g

Warranty 3 years

Optional accessories and download

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C

code SN171

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C

code SN264E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C

code SN265E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C

code SN266E

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C

code SN267E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C

code SN270E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 2 meters

Temperature range: -50 to 400°C

code SN271E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C

code SN272E

Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C

code SN273E

Lithium battery 3,6V/AA

code A4203

Accredited temperature calibration

code SLU001

KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers

code KIT-GSM-L

USB adapter

code LP003

Start/stop magnet

code LP004

COM adapter with protection IP65

code LP012

GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families

code LP040

Transducer USB/RS232 complete

code MP006

Antenna for GSM modem

code MP009/1

Wall holder for GPRS modem

code MP036

DIN Rail 35mm holder for GPRS modem

code MP037

Communication cable for GSM modem

code QMS2901

One time fee for using M2M server - applied for each data logger with modem

code SLU302

wall holder for datalogger

code F9000

Self Adhesive Dual Lock

code MD036

COMET Database

code CDB

Software for COMET TPrints and GSM modems

code SWR001

Female ELKA3008V connector

code K1321
