Thermo-hygro-barometer with external probe, cable 4 meters
Thermometer, hygrometer, barometer is designed for measurement and datalogging of temperature, relative humidity and atmospheric pressure into the internal non-volatile memory.
Also barometric pressure tendency reading available. Free PC program enables to transfer recorded data to the computer for evaluation.
Audio and optical alarm of measured values.
Memory of minimum and maximum measured values.
Function Hold - manual storing of actual values for later displaying.
Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

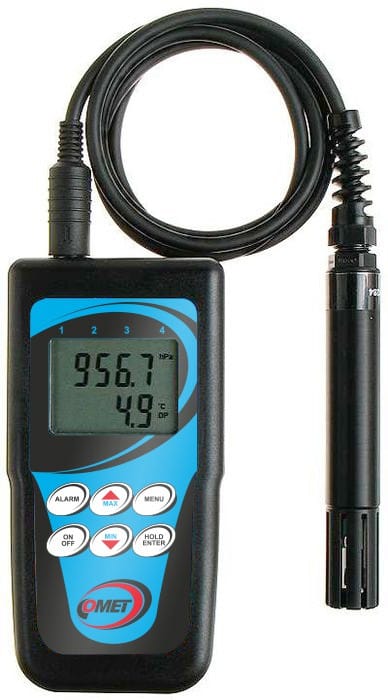

Thermometer - hygrometer - barometer with external air temperature-humidity probe on a 4 meters cable. Probe diameter is 18mm, length 135mm. Built-in indoor temperature and air pressure sensors.
-
codeD4141-4
-
Warranty3 years
Product variants
Technical data
Measured value
Temperature
Relative humidity
Atmospheric pressure
TEMPERATURE SENSOR
Measuring range
-10 to +60 °C (internal); -30 to +105 °C (external)
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
ATMOSPHERIC PRESSURE SENSOR
Measuring range
800 to 1100 hPa
Accuracy
±2hPa at 23°C
Resolution
0.1 hPa
GENERAL TECHNICAL DATA
Operating temperature
electronics -10 to +60 °C, external probe -30 to +105 °C
Channels
internal sensor of temperature and atmospheric pressure, 1x connectable temperature+humidity probe
Acoustic signalization + backlit LCD
YES
Memory
16,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Measuring interval and display reading refresh
0.7 to 5 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life
approx. 6 months
Protection class
IP20
Dimensions (without connectors)
191 x 71 x 27 mm; length/diameter of external probe 135/18 mm
External probe cable length
4 meters
Weight (including batteries)
approx. 155 g
Warranty
3 years
Optional accessories and download
ac/dc adapter 230Vac to 12Vdc/1A, EU
code
A1515eu
ac/dc adapter 230Vac to 12Vdc/1A, UK
code
A1515uk
ac/dc adapter 230Vac to 12Vdc/1A, US
code
A1515us
NiMH rechargeable batt. 9V/200mAh
code
A3400
Accredited temperature and relative humidity calibration
code
SLU003
Accredited atmospheric pressure calibration
code
SLU006
Transducer USB/RS232 complete
code
MP006
Mini USB cable, 2 meters
code
MP038
Communication cable for COMMETER Dxxxx
code
QLOG015
Mini USB cable, 2 meters
code
MP038
plastic sensor protection with stainless filter (black)
code
F5200B
PTFE sensor protection, white
code
F5300
Humidity Standard 10%RH, set 5pcs
code
HM023
Humidity Standard 80%RH, set 5pcs
code
HM024
Vessel for adjustment and calibration of humidity
code
MD046
PP4 Flat circular flange
code
PP4
PP90 Right-angled stainless steel flange
code
PP90
COMET Magnetic Foldable Stand
code
PPO001
